Opening and closing hydraulic valve of the hydraulic pump
WARNING: This page is about a different variant/trim than selected.
Access for opening and closing the hydraulic valve
Courtesy of PORSCHE OF NORTH AMERICA, INC.

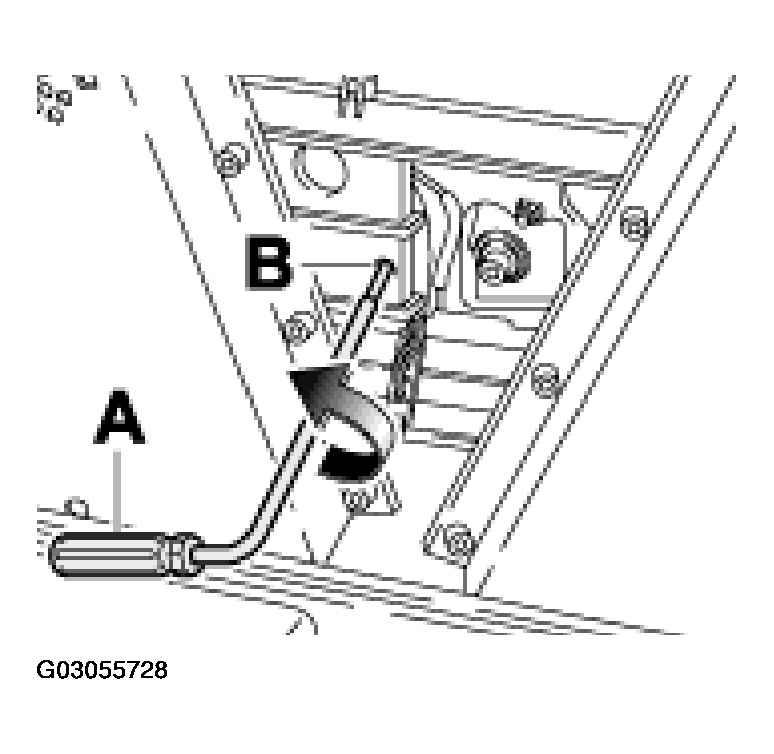

To open, insert Allen key -A-
into hydraulic valve -B-
and turn approx. 1 turn to the left. See Fig 1.
To close, insert Allen key into hydraulic valve -B-
and turn to the right. See Fig 1.
