Converting hydraulic pump
WARNING: This page is about a different variant/trim than selected.
NOTE:
As of middle of model year 2003 a new hydraulic pump is used. The new hydraulic pump can also be installed in all vehicles with a production date up to and including model year 2001 if the holder is also converted as well. See CONVERTING HOLDER FOR HYDRAULIC PUMP (CABRIOLET) .
HYDRAULIC PUMP CONVERSION PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Electrical plug connection | 2 | Disconnect electrical plug connection, press locking tab and push out of bracket. | Push plug into bracket and make electrical plug connection. |
| 2 | Fastening nut | 3 | Unscrew. | See TIGHTENING TORQUES . |
| 2A | Silent mount | 2 | Unscrew. | |

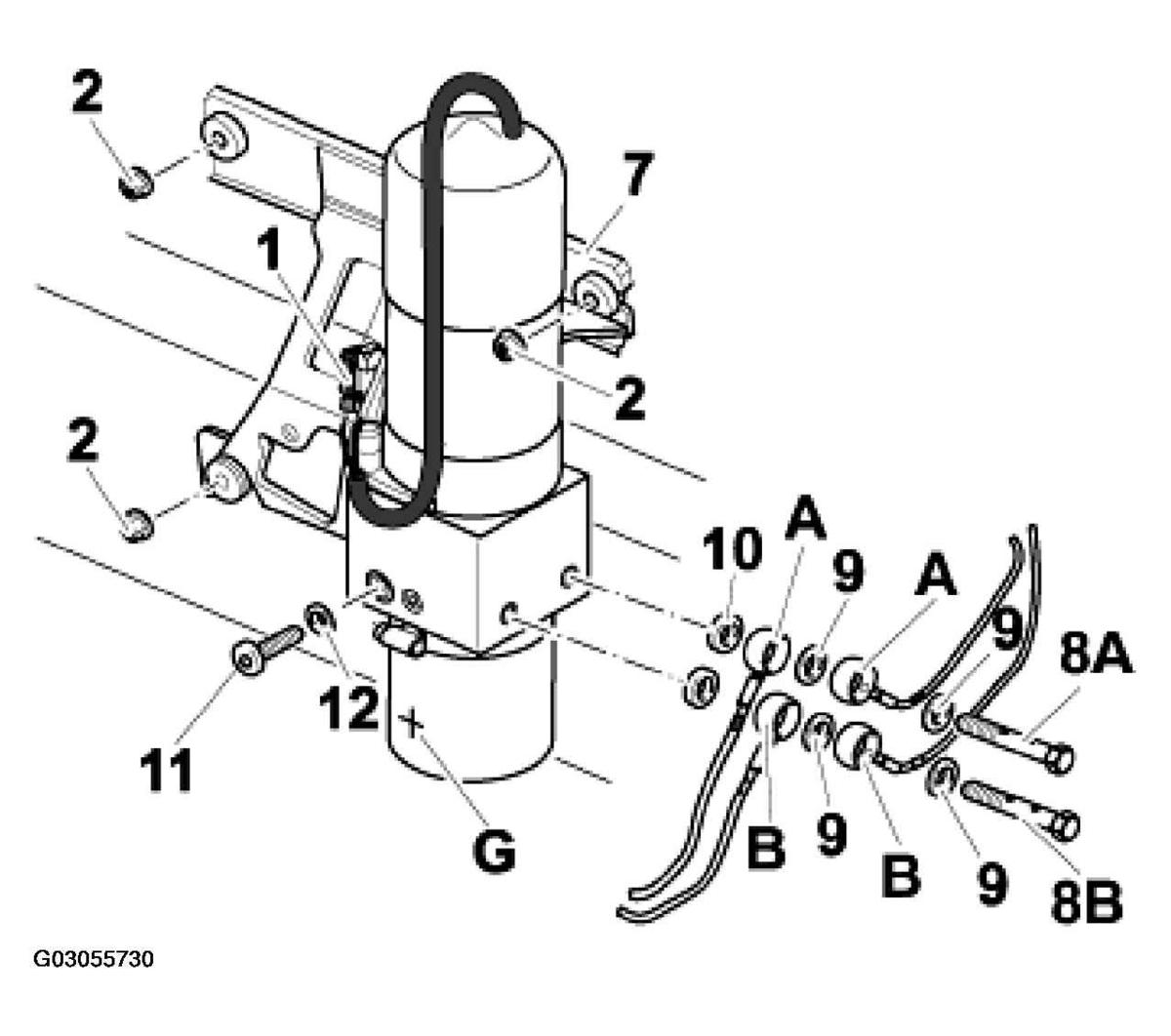

| 7 | Bracket with hydraulic pump | 1 | Unscrew collar nuts -2- . See Fig 1. | |
| 8A | Banjo bolt | 1 | Lay cloth under banjo bolt -8A- . See Fig 1. | Push on sealing rings -9, 10-A-8A- . See Fig 1. |
| 8B | Banjo bolt | 1 | Lay cloth under hydraulic pump before unscrewing banjo bolt -8B- . See Fig 1. | Push on sealing rings -9, 10-B-8B- . See Fig 1. |
| 9 | Sealing ring A8 x 12, 1 thick | 4 | Always replace sealing ring -9- . See Fig 1. | |
| 10 | Sealing ring A8 x 12, 2 thick | 2 | Always replace sealing ring -10- . See Fig 1. | |
| 11 | Plug G 1/8 inch | 1 | ||
| 12 | Sealing ring A10 x 14, 1 thick | 1 | Always replace sealing ring -12- . See Fig 1. |
