Opening and closing hydraulic valve of the hydraulic pump

Access for opening and closing the hydraulic valve

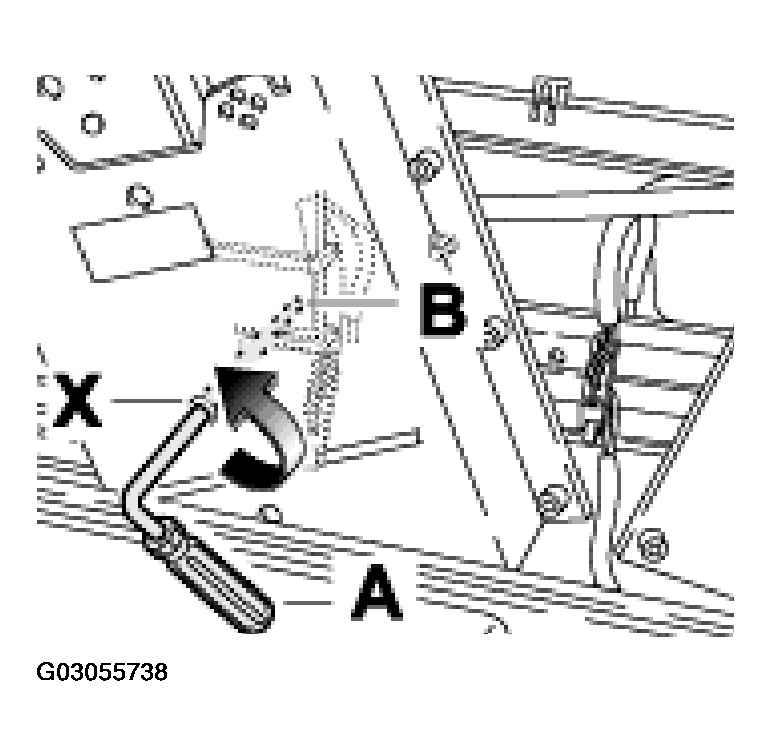

Fig 1: Opening And Closing Hydraulic Valve Of Hydraulic Pump - As Of MY 2003

Courtesy of PORSCHE OF NORTH AMERICA, INC.

To open, insert the Allen key -A-  into the hydraulic valve -B-  through the bore -X-  of the roll-over bar module and turn approx. 1 turn to the left. See Fig 1.

To close, insert the Allen key -A-  into the hydraulic valve -B-  through the bore of the roll-over bar module -X-  and turn to the right. See Fig 1.
