Line routing when replacing right hydraulic cylinder as of model year 2002

WARNING:

• Damage to hydraulic lines. Do not bend, trap or crush hydraulic lines during installation.
• The spare hydraulic cylinder has hydraulic lines approx. twice the length of the standard
• component and can be installed on both sides. To prevent damage to hydraulic lines due to bending, trapping or crushing during installation, the lines must be routed properly.

1. Line routing

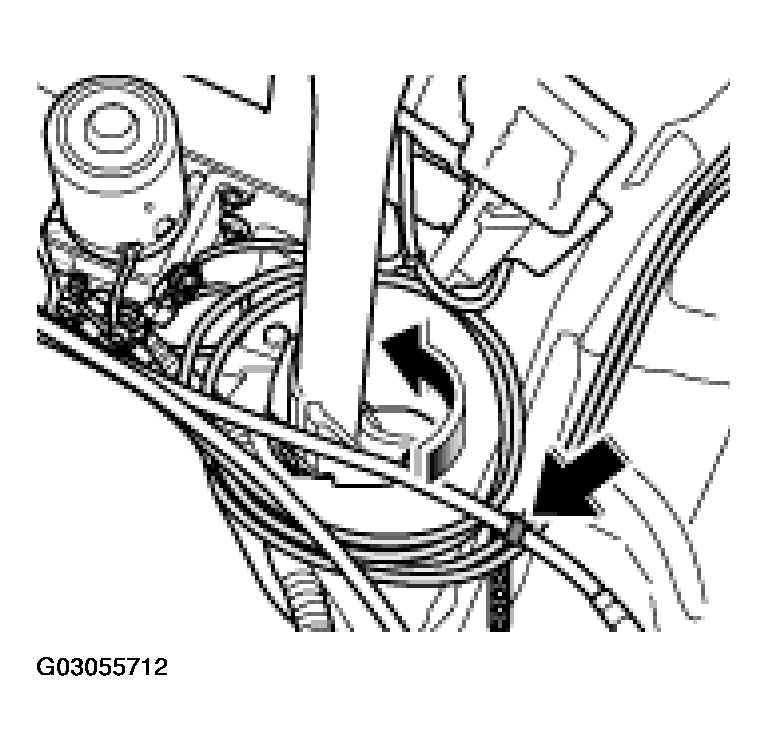

Fig 1: Identifying Hydraulic Lines Routing (As Of MY 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Wrap the hydraulic lines once round the support of the frame for the roll-over bar. Fix the lines with a tie wrap -arrow-  . See Fig 1.
2. The lines must be connected to the pump without tension and twisting. Observe allocation of hydraulic lines! -Blue, red-
