Removing hardtop

WARNING: This page is about a different variant/trim than selected.

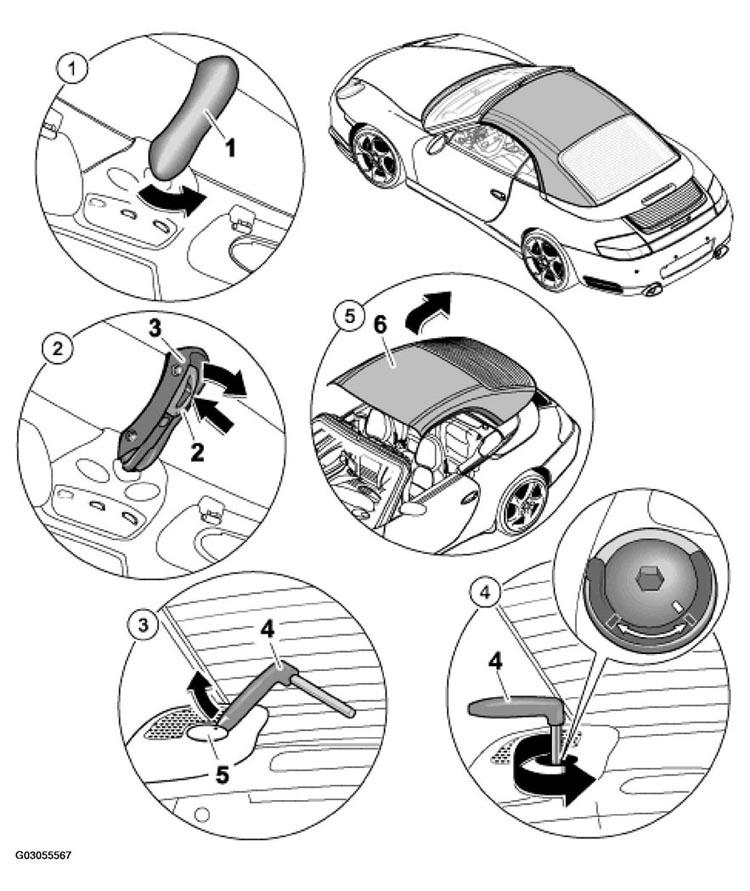

Fig 1: Removing Hardtop Components
G03055567Courtesy of PORSCHE OF NORTH AMERICA, INC.
HARDTOP REMOVAL PROCEDURE AND INSTRUCTIONS (STEPS 1-4)

No. Procedure Instructions
    Open all four side windows.
1 Pulling off cover for locking lever Pull cover of the front locking lever -1-  . See Fig 1.
2 Opening the locking lever Press locking button -2-3-  . See Fig 1.
3 Removing the plastic cover Take unlocking handle -4-5-4-  . See Fig 1.
4 Unlock hardtop locks Insert unlocking handle -4-inset-  . See Fig 1.
CAUTION: Hand can be trapped between the hardtop and convertible top compartment lid! Evenly lift the hardtop at both sides.
HARDTOP REMOVAL PROCEDURE AND INSTRUCTIONS (STEP 5)

No. Procedure Instructions
5 Removing the hardtop Together with another person on the other side, lift the hardtop -6-  . See Fig 1.
