Installing hardtop

WARNING: This page is about a different variant/trim than selected.

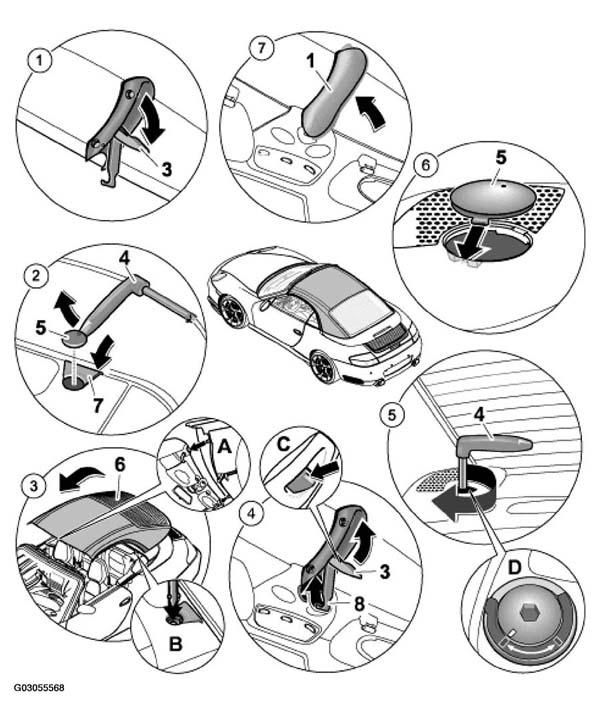

Fig 1: Installing Hardtop Components
G03055568Courtesy of PORSCHE OF NORTH AMERICA, INC.
HARDTOP INSTALLATION PROCEDURE AND INSTRUCTIONS (STEPS 1-2)

No. Procedure Instructions
    Open all four side windows
1 Opening the locking lever The locking lever -3-  . See Fig 1.
2 Lifting off plastic covers Take unlocking handle -4-5-7-  . See Fig 1.
CAUTION: The hardtop lining and windstop can be damaged! Remove the windstop before fitting the hardtop.
HARDTOP INSTALLATION PROCEDURE AND INSTRUCTIONS (STEPS 3-7)

No. Procedure Instructions
3 Putting on the hardtop Carefully lift the hardtop -6-inset A-inset B-  . See Fig 1.
4 Closing locking lever at the front. Swivel locking lever -3-8-inset C-  . See Fig 1.
5 Closing locking lever at the rear Insert unlocking handle -4-inset D-  . See Fig 1.
6 Inserting plastic cover Press both plastic covers -5-  . See Fig 1.
7 Pushing on cover of the front locking lever. Push on cover -1-  . See Fig 1.
