Installing control unit

WARNING: This page is about a different variant/trim than selected.
  1. Join electrical plug connections -arrow C-  and engage the locking lever downward. Join plug connection -arrow B-  . Join plug connection -arrow A-  , and press the connector housing to the left unit it engages. Lay lines carefully (do not trap). See Fig 1.

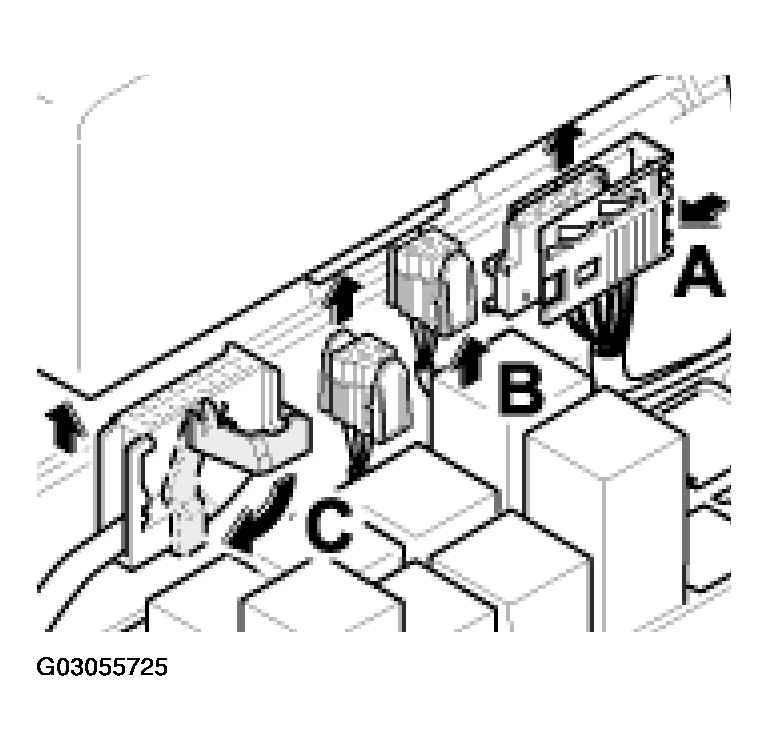

    2. Fig 1: Installing Convertible Top Control Unit
    G03055725Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. After installing a new control unit, the control unit must be recalibrated with the Porsche System Tester.
