Tightening torques
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS - CONVERTIBLE-TOP COMPARTMENT LID DRIVE FASTENER
| Location |
Illustration |
Thread |
Tightening torque [Nm] (ftlb.) |
| Hexagon thread bolts for installing the drive |
-3-

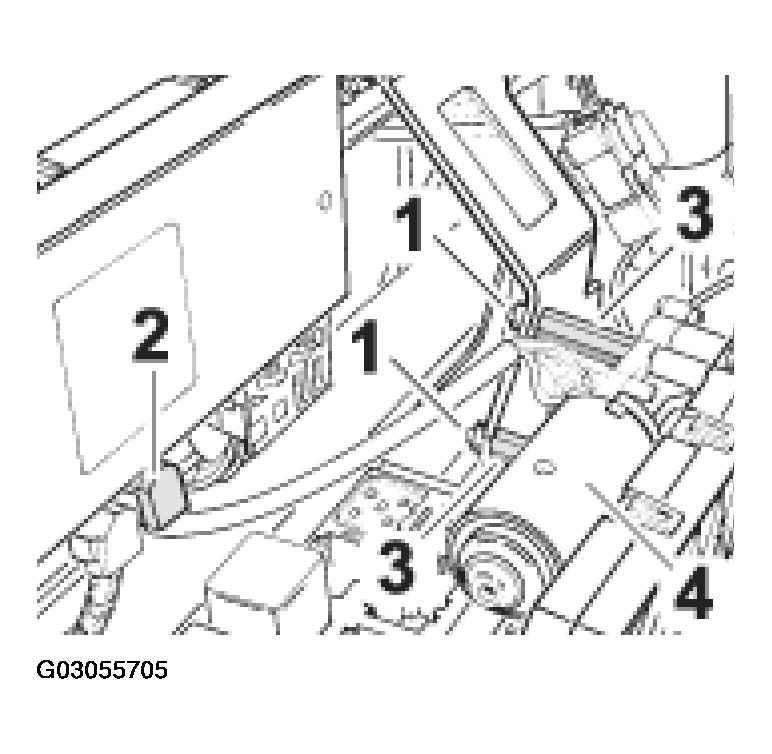

. See Figure. |
M5 |
6 (4.5) |
| Hexagon nut for installing the drive |
-1-
. See Figure. |
M6 |
10 (7.5) |
