Tightening torques
WARNING: This page is about a different variant/trim than selected.
TIGHTENING TORQUE SPECIFICATIONS - CONVERTIBLE TOP
| Location | Illustration | Thread | Tightening torque [Nm] (ftlb.) |
|---|---|---|---|

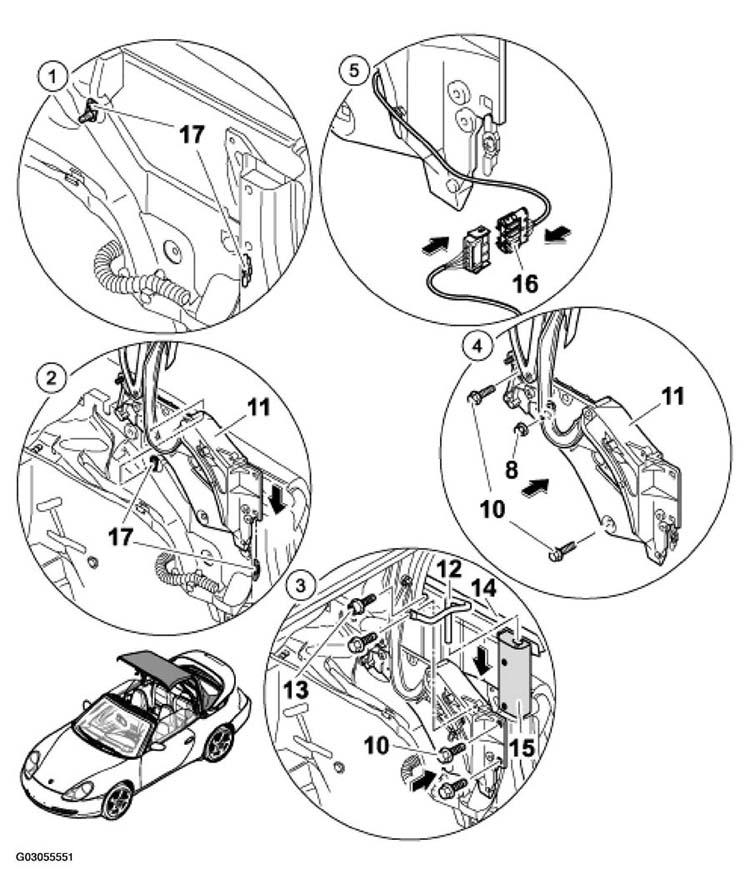

| Fastening screw on convertible-top support | -10- . See Figure. | M8 | 50 (37) |
| Fastening nut on convertible-top support | -8- . See Figure. | M8 | 23 (17) |
| Fastening nut on the hydraulic cylinder | -8- . See Figure. | M8 | 17 (13) +/-2 (1.5) |
