Tightening torques
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS - HARD TOP FASTENER
| Location | Illustration | Thread | Tightening torque [Nm] (ftlb.) |
|---|---|---|---|

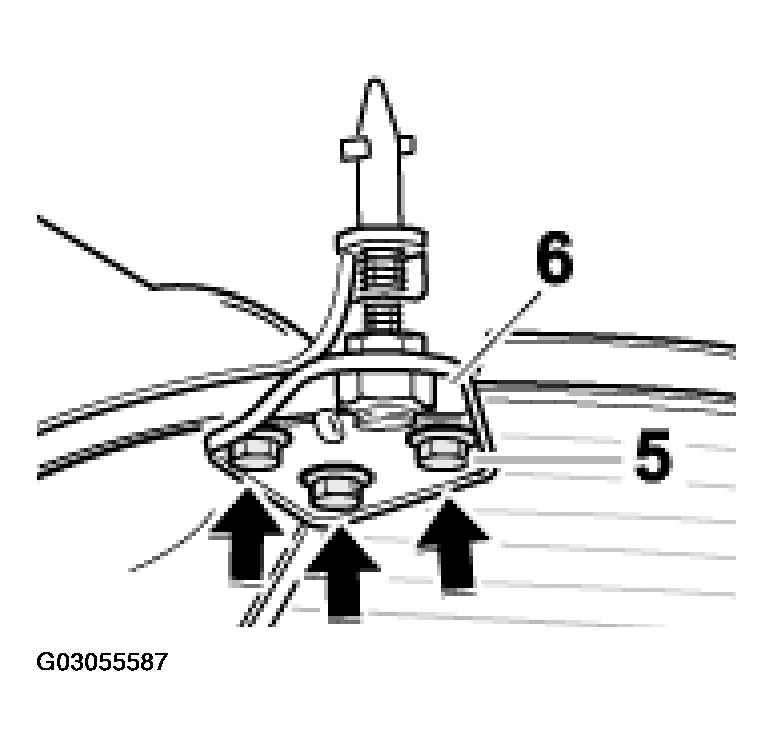

| Fastening screws for hardtop locking element | -5- . See Figure. | M6 | 10 (7.5) |

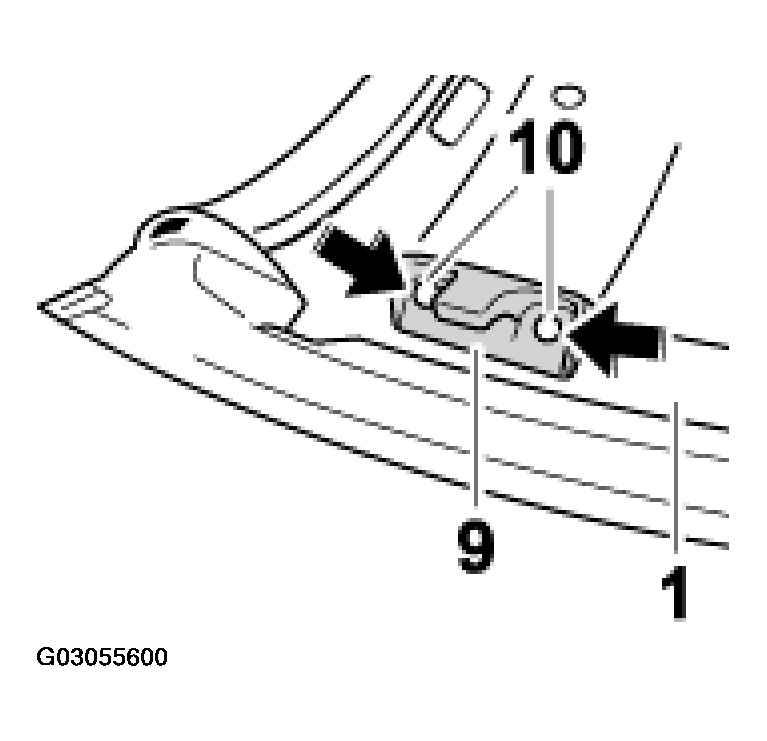

| Fastening screws for centring peg | -10- . See Figure. | M6 | 10 (7.5) |

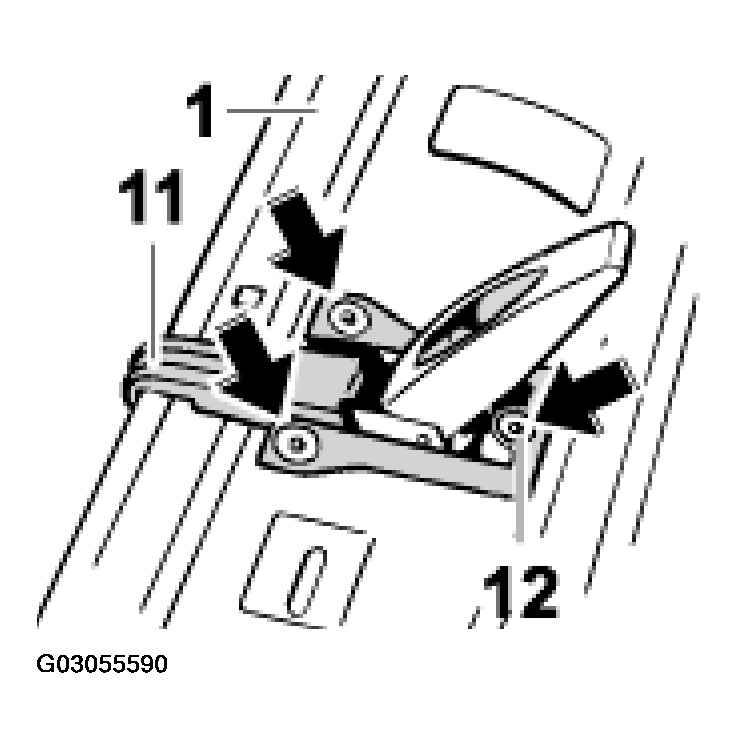

| Fastening screws for locking lever | -12- . See Figure. | M6 | 10 (7.5) |

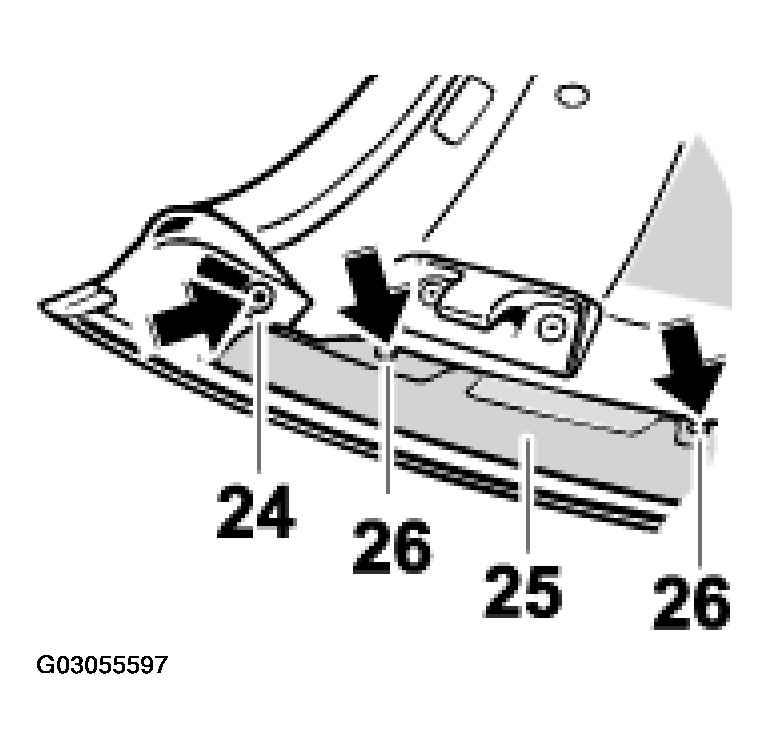

| Fastening screw for roof frame seal | -24- . See Figure. | M6 | 10 (7.5) |
