Disassembling hardtop: Preparation

WARNING: This page is about a different variant/trim than selected.

Place hardtop on the assembly fixture and lock with the latching levers and the locking lever at front.

  1. Detaching cover strips and roof strip clips
    1. Lift up the cover strip to the left and right -1-  using a plastic spatula and pull it off. The roof strip clips are destroyed when they are removed.

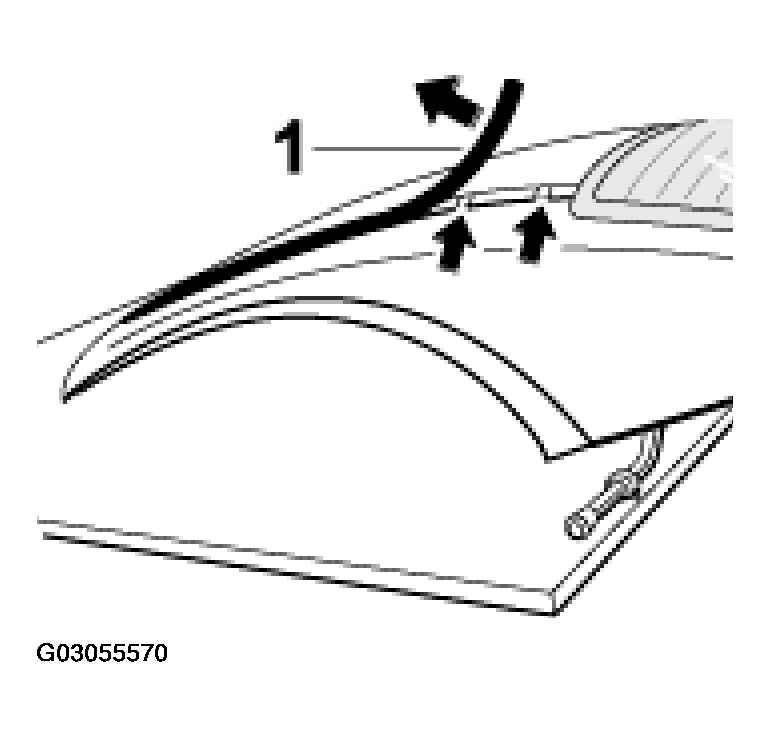

Fig 1: Detaching Cover Strips And Roof Strip Clips
G03055570Courtesy of PORSCHE OF NORTH AMERICA, INC.
