Repairing convertible-top lock
WARNING: This page is about a different variant/trim than selected.
CONVERTIBLE-TOP LOCK REPAIRING PROCEDURE AND INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| Opening hydraulic valve of the hydraulic pump | See Filling the hydraulic system . | |

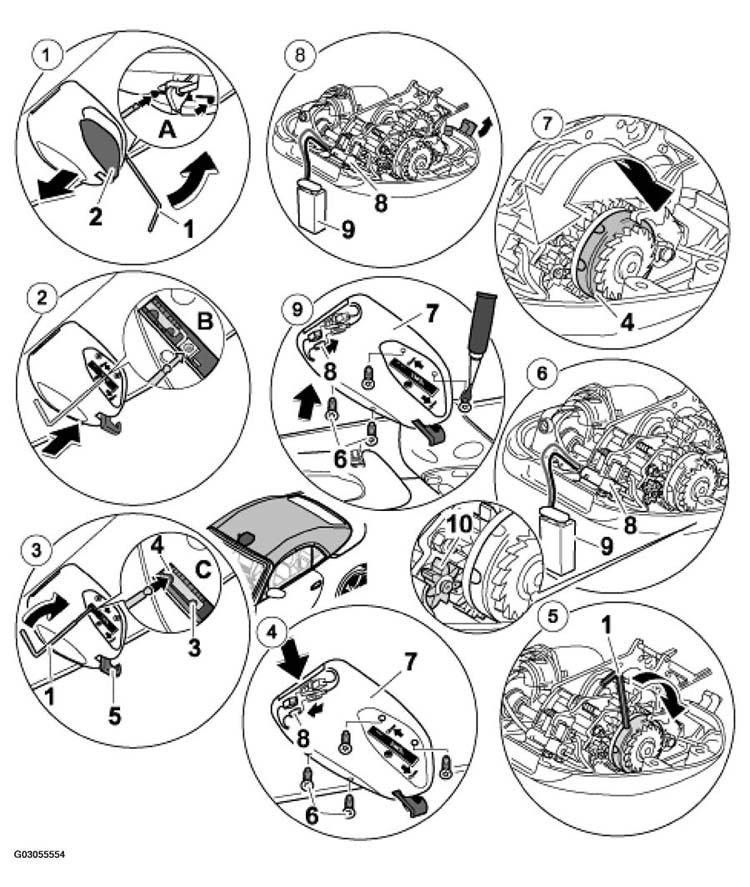

| 1 | Removing lid from convertible-top lock | Insert Allen key (tool kit) -1-inset A-2- . See Fig 1. |
| 2 | Disengaging the lock | With the Allen key, press the pawl -inset B- . See Fig 1. |
| 3 | Moving locking hook to end position | Insert the Allen key -1-3-4-inset C-5- . See Fig 1. |
| 4 | Releasing convertible-top lock | Unscrew fastening screw -6-7-8- . See Fig 1. |
| 5 | Moving locking hook to end position | Insert the Allen key -1- . See Fig 1. |
| 6 | Aligning gear wheel markings to one another | Leave Allen key inserted with the driving plate and gear wheel engaged. Supply power to the electric motor via the 2-pole plug -8-9-10- . See Fig 1. |
| 7 | Engaging driving plate | Remove Allen key, turn the driving plate -4- . See Fig 1. |
| 8 | Extending locking hook | Using a separate power source, e.g. 9-volt block battery -9-8- . See Fig 1. |
| 9 | Installing convertible-top lock | Join electrical plug connection -8-7-6- . See Fig 1. |
