Repairing convertible-top compartment lid drive

WARNING: This page is about a different variant/trim than selected.

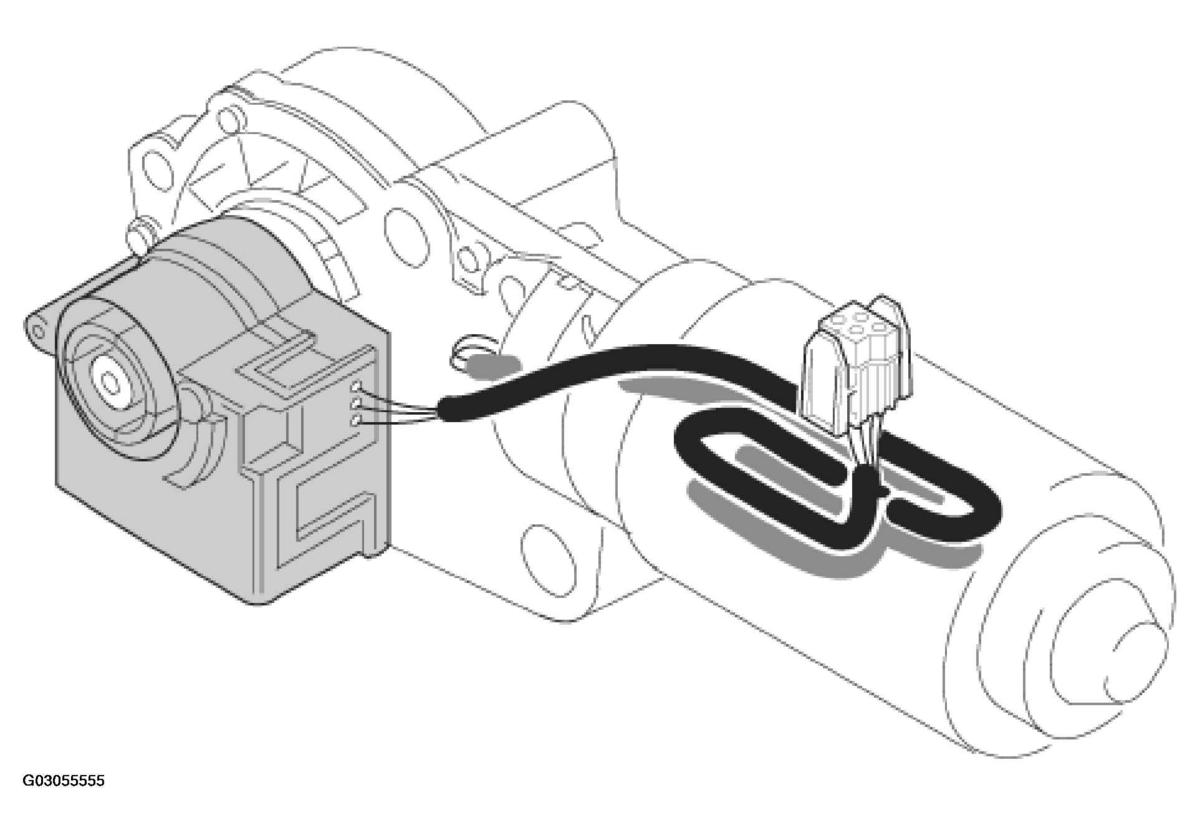

Fig 1: Identifying Convertible-Top Compartment Lid Drive
G03055555Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fig 2: Repairing Convertible-Top Compartment Lid Drive Components
G03055556Courtesy of PORSCHE OF NORTH AMERICA, INC.
CONVERTIBLE-TOP COMPARTMENT LID DRIVE REPAIRING PROCEDURE

No. Procedure Instructions
10 Opening convertible-top compartment lid Insert Allen key (tool kit) -11-12-  . See Fig 2.
11 Closing convertible-top compartment lid Grasp convertible-top compartment lid -12-  . See Fig 2.
12 Undoing hexagon socket head bolt Turn Allen key (tool kit) -1-13-  . See Fig 2.
13 Bonding in hexagon socket head bolt Coat fastening screw -13-  . See Fig 2.
14 Calibrating convertible top Connect the Porsche System Tester to the diagnostic socket.
  Switch on ignition
  Select menu item "Convertible top". Select menu item "Calibrate" in the command line which then appears. Start calibration with the F7 key. Calibration can be started irrespective of whether the convertible top position is open or closed. The latching hook in roof frame 1 does not close during calibration.
