Making swivel arm

Make swivel arm -C-  with basic material Multiplex plate 550 x 200 mm, 25 mm thick.

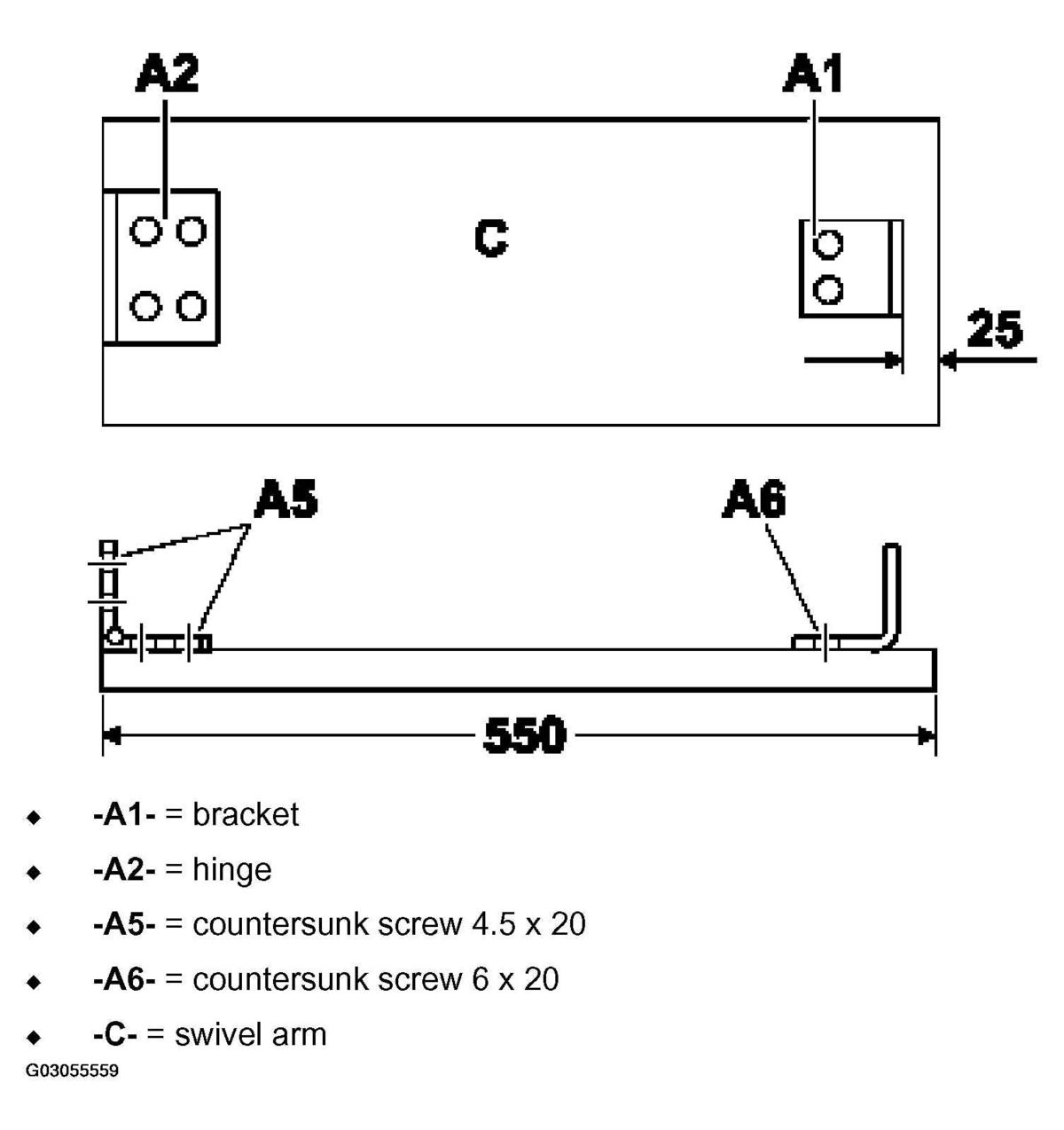

Fig 1: Identifying Dimensions For Making Swivel Arm

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Work procedure:
   1. Fit bracket -A1-  with 2 countersunk screws -A6-  following the dimensions specified on the swivel arm -C-  . See Fig 1.
   2. Fit hinge -A2-  with 4 countersunk screws -A5-  following the dimensions specified on the swivel arm -C-  . See Fig 1.
