Fitting swivel and support cheeks on the base plate

Fit swivel arm -C-  and support cheeks -B-  on the base plate -D-  . See Fig 1.

Basic material: Wood-core plywood 1500 x 900 mm, 19 mm thick

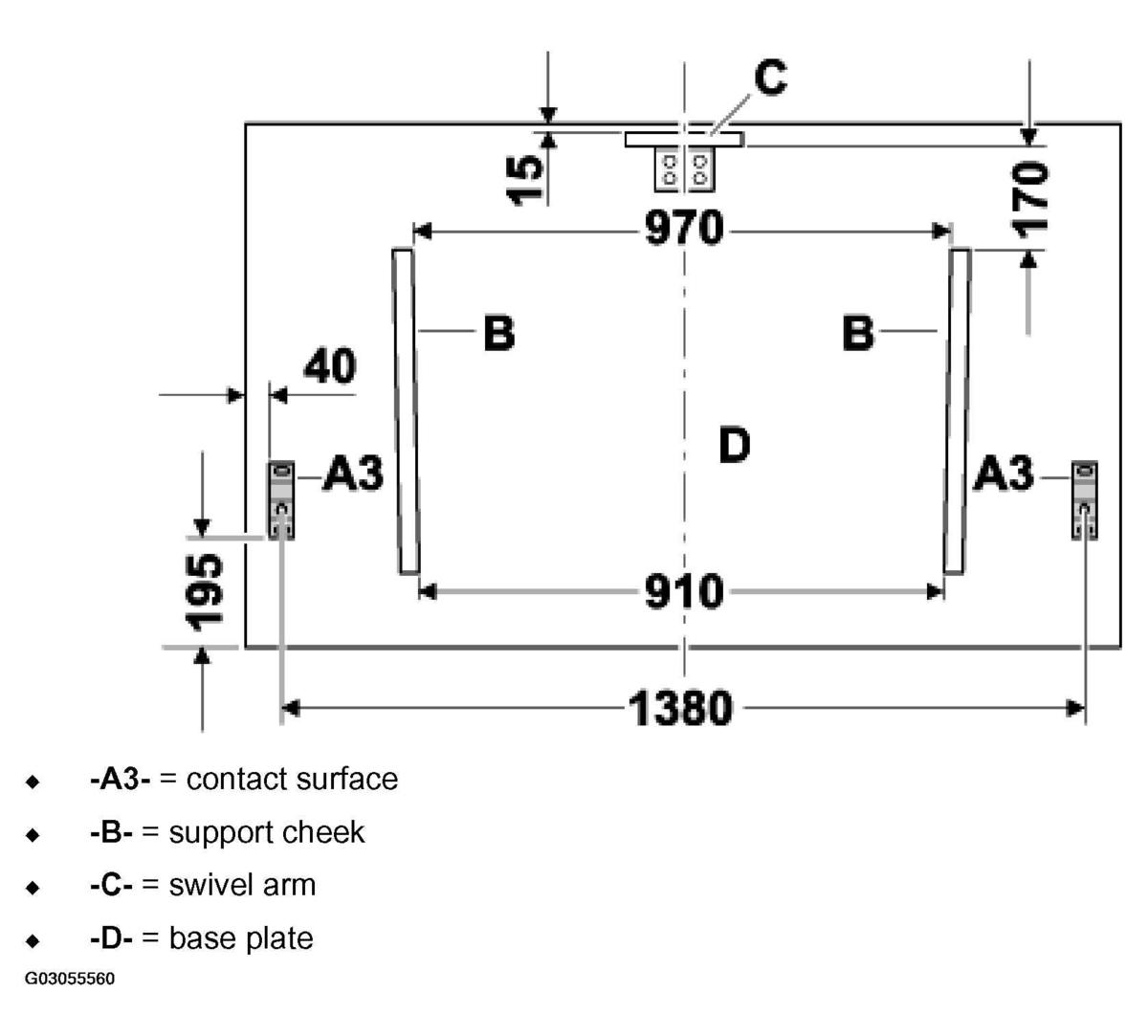

Fig 1: Identifying Dimensions For Fitting Swivel And Support Cheeks On Base Plate

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Work procedure:

   During assembly, all parts are positioned from the centre!

   1. Measure and mark the base plate -D-  . See Fig 1.
   2. Fasten completed swivel arm -C-  on the hinge -A2-  with four 4.5 x 20 countersunk screws in accordance with the dimensions specified on the base plate -D-  . See Fig 1.
   3. Transfer hole pattern of the support cheeks -B-  onto the base plate -D-  in accordance with the specified dimensions, and drill holes using a 6-mm drill bit. See Fig 1.
   4. Fit support cheeks -B-  over the prefitted straight pins -A4-  onto the base plate -D-  . See Fig 1.
