Fitting mounting points for the hardtop locking lever on the base plate
WARNING: This page is about a different variant/trim than selected.

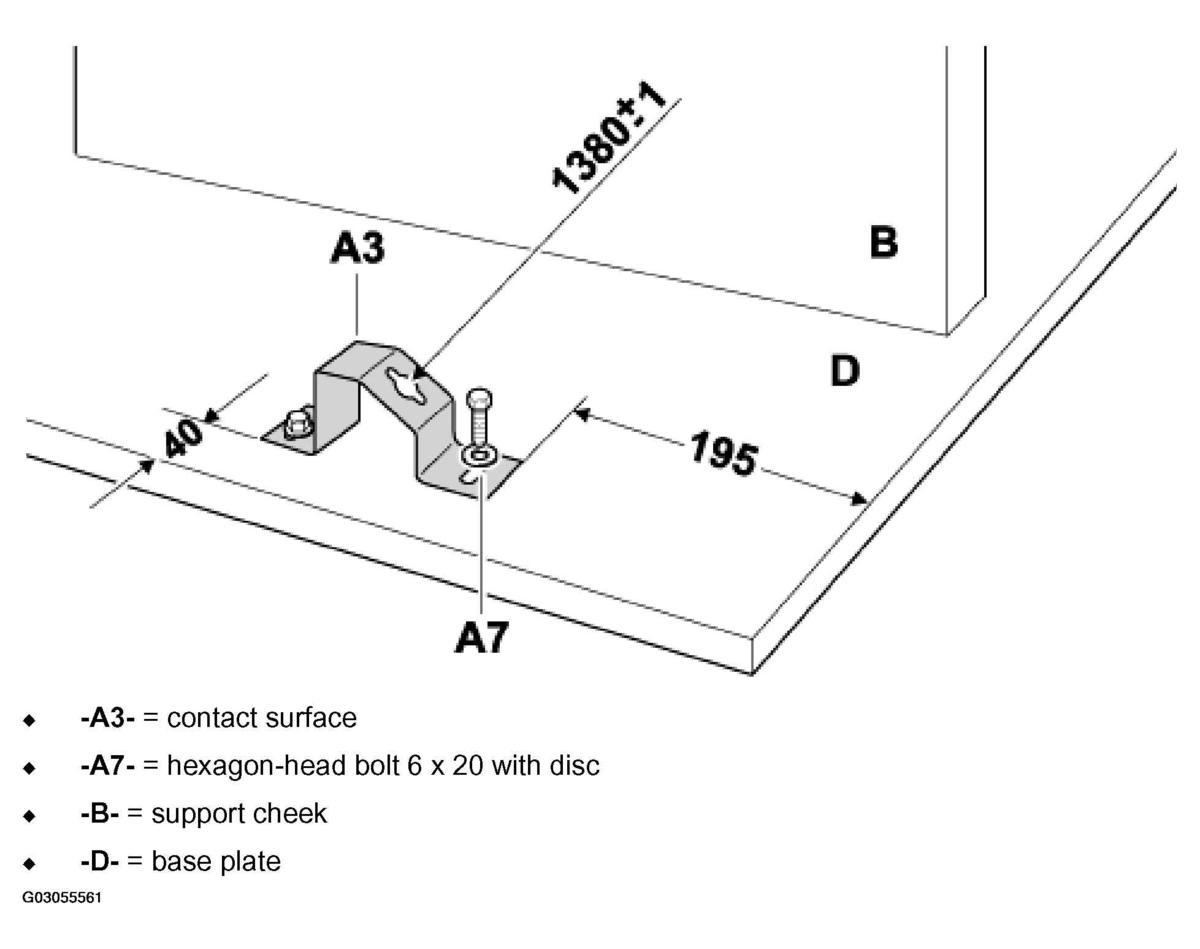

Fit mounting points -A3-
for the hardtop locking lever on the base plate -D-
. See Fig 1.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Work procedure:
- Fit mounting points -A3-
both with hexagon-head bolts -A7-
according to the dimensions specified on the base plate -D-
. See Fig 1.
