Fitting boom and support on the base plate

Fit boom -E-  and support -F-  on the base plate -D-  . See Fig 1.

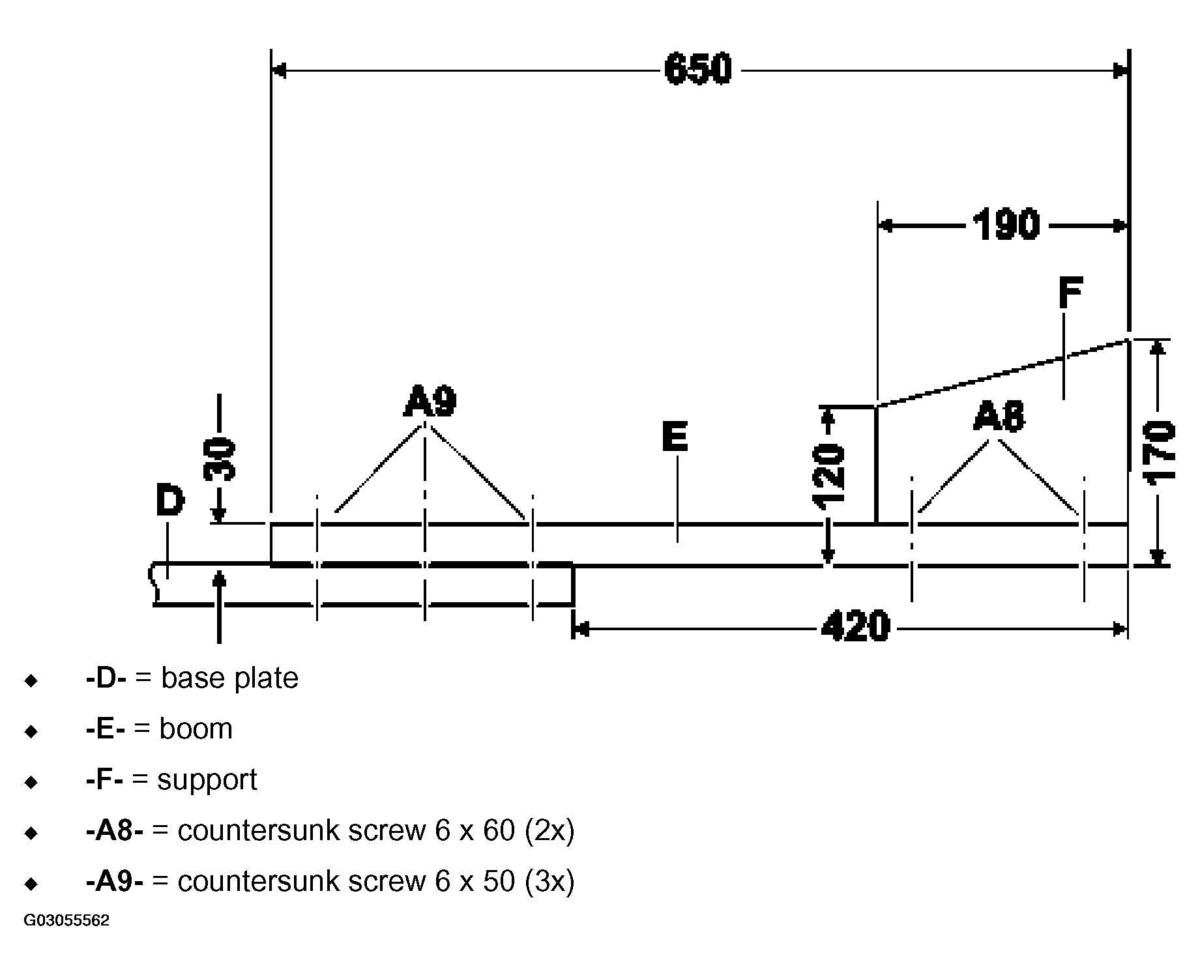

Fig 1: Identifying Dimensions For Fitting Boom And Support On Base Plate

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Place boom in the centre!

1. Measure and mark the base plate -D-  . See Fig 1.
2. Fit boom -E-  on the base plate -D-  with the three countersunk screws -A9-  in accordance with the specified dimensions. See Fig 1.
3. Fit support -F-  on the boom -E-  with the two countersunk screws -A8-  in accordance with the specified dimensions. See Fig 1.
