Tightening torques
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS - HARDTOP ADJUSTMENTS
| Location |
Illustration |
Thread |
Tightening torque [Nm] (ftlb.) |

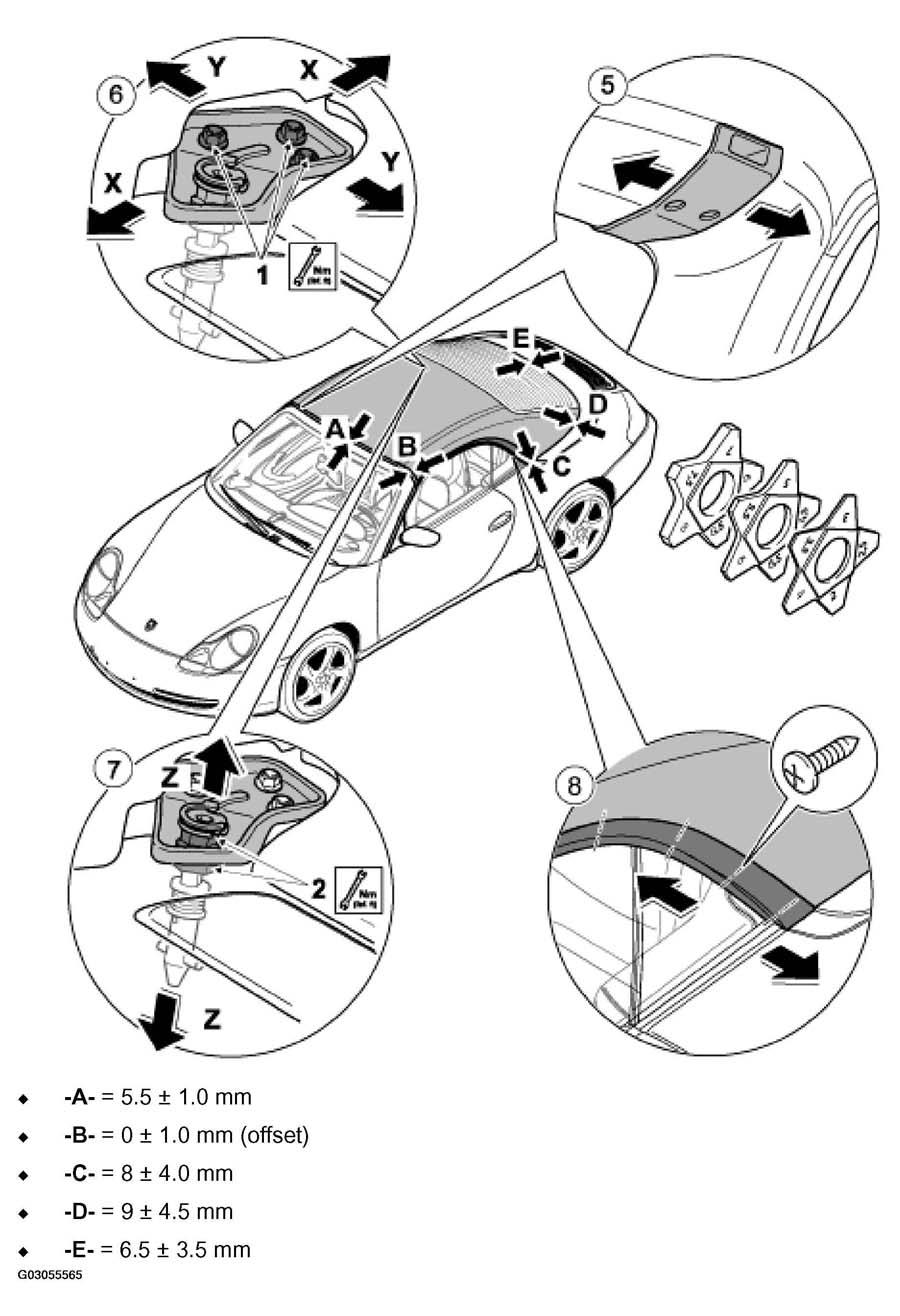

| Fastening screws of the rear hardtop lock |
-1-
. See Figure. |
M6 |
10 (7.5) |
| Fastening nuts of the rear hardtop locks |
-2-
. See Figure. |
|
90 (67) |
