TEST AND ADJUSTMENT VALUES CHART
| Designation | Dimension | Note | |
|---|---|---|---|

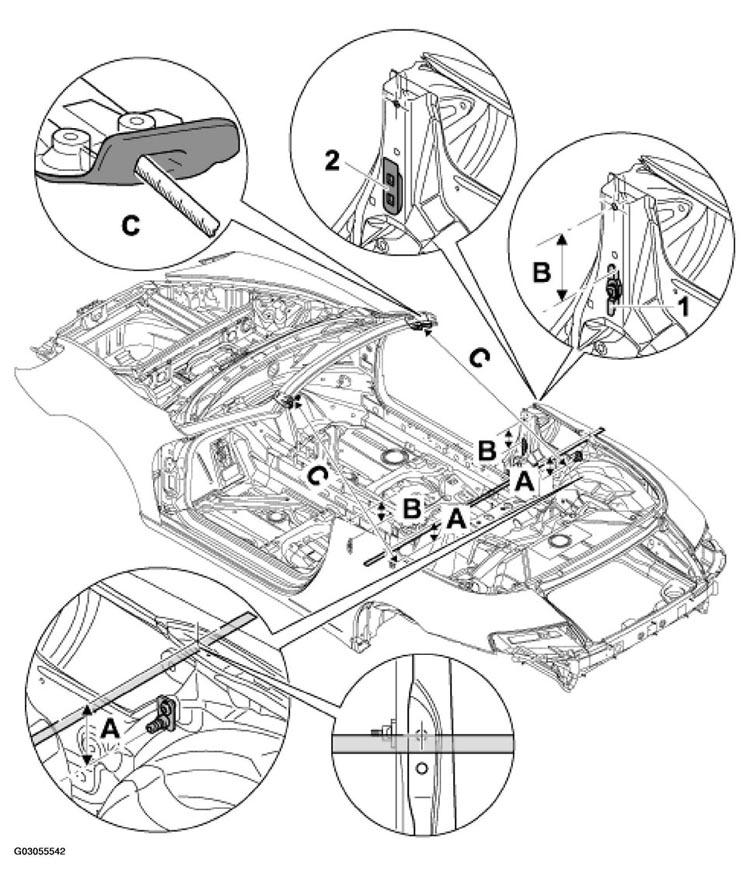

| Rear side parts to the assembly aid, centre of peg on the rear side section on the inside. | -A- . See Figure. | 135 mm | Illustrated in procedure 1 |
| The upper fastening point, centre of hole for convertible-top support (rear side part on inside), to the assembly aid. | -B- . See Figure. | 118 mm | Illustrated in procedure 1 |
| Centre of assembly aid peg to lower edge of convertible-top peg housing on inside. | -C- . See Figure. | 1064 mm | Illustrated in procedure 1 |

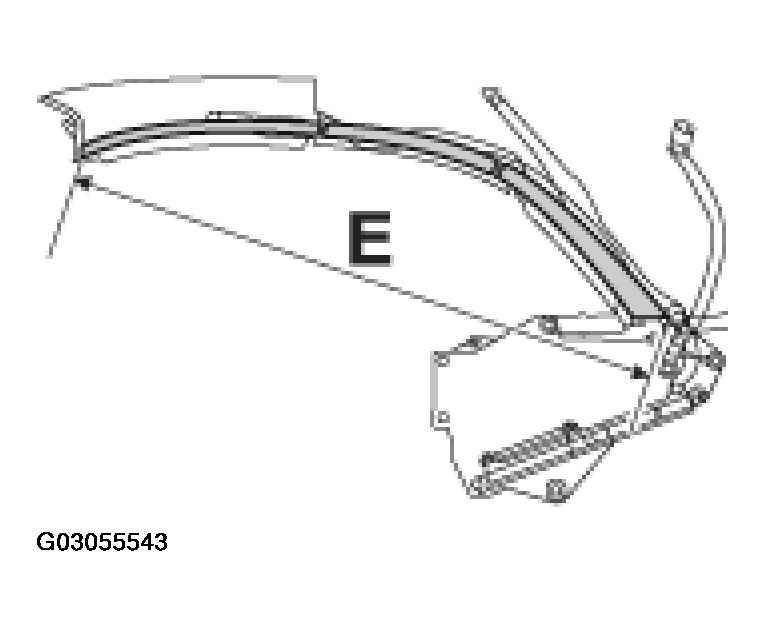

| Check dimension from the styling edge, roof frame 1, lower edge diagonal to styling edge, roof frame 3, upper edge, rear | -E- . See Figure. | 1024 +/- 2 mm | Illustrated in procedure 3 |
