Instructions For Removal And Installation (Transmission G 86): Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

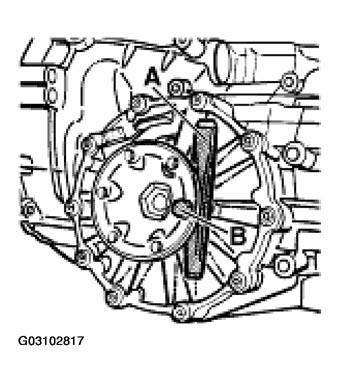

Remove the flanged shaft. To do this, place a chisel or spacer "A" under the flanged shaft and pull out the flanged shaft by turning the screw "B".

Fig 1: Removing Flanged Shaft
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Remove the flanged shaft. To do this, place a chisel or spacer "A" under the flanged shaft and pull out the flanged shaft by turning the screw "B".

Fig 1: Removing Flanged Shaft
Courtesy of PORSCHE OF NORTH AMERICA, INC.
