Removing And Installing Sealing Ring For Short Flanged Shaft: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Thinly coat sealing lip and circumference of sealing ring with Vaseline and insert sealing ring with special tool 3382 up to the stop.

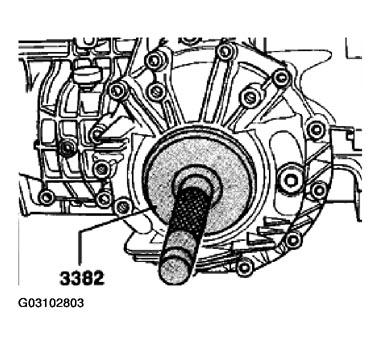

    Fig 1: Inserting Sealing Ring Using Special Tool
    G03102803Courtesy of PORSCHE OF NORTH AMERICA, INC.
    NOTE:
    • The sealing ring must fit in the housing at the same depth all round.
  2. Check transmission oil in final drive and top up if necessary.
