Removing And Installing Sealing Ring For Long Flanged Shaft: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove long flanged shaft. See REMOVING AND INSTALLING LONG FLANGED SHAFT  .
  2. Remove snap ring for ball bearing.

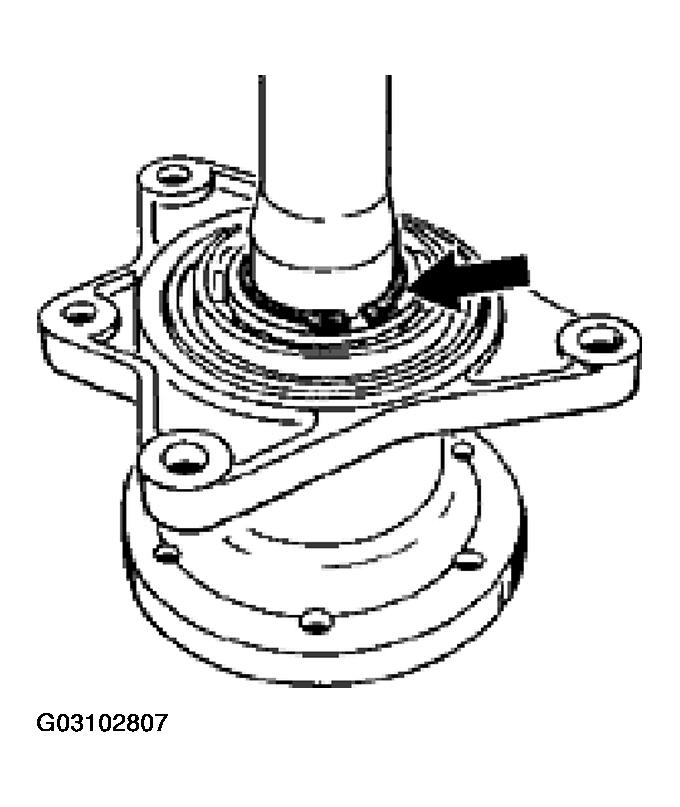

    Fig 1: Removing Snap Ring For Ball Bearing
    G03102807Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Press flanged shaft out of mounting saddle.

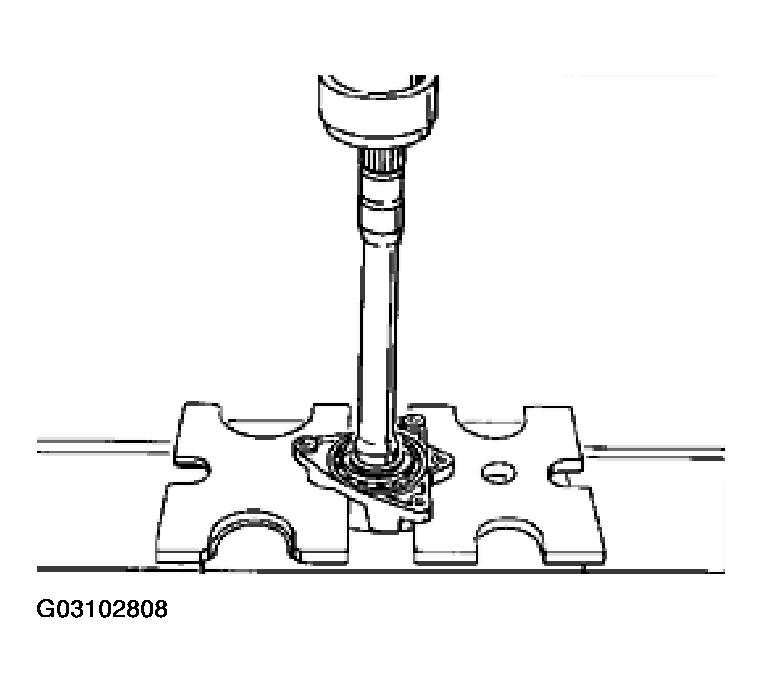

    Fig 2: Pressing Flanged Shaft Out Of Mounting Saddle
    G03102808Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Lever sealing ring out of mounting saddle with large screwdriver.
