Removing And Installing Sealing Ring For Long Flanged Shaft: Installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Push new sealing ring up to the stop with special tool 9615.

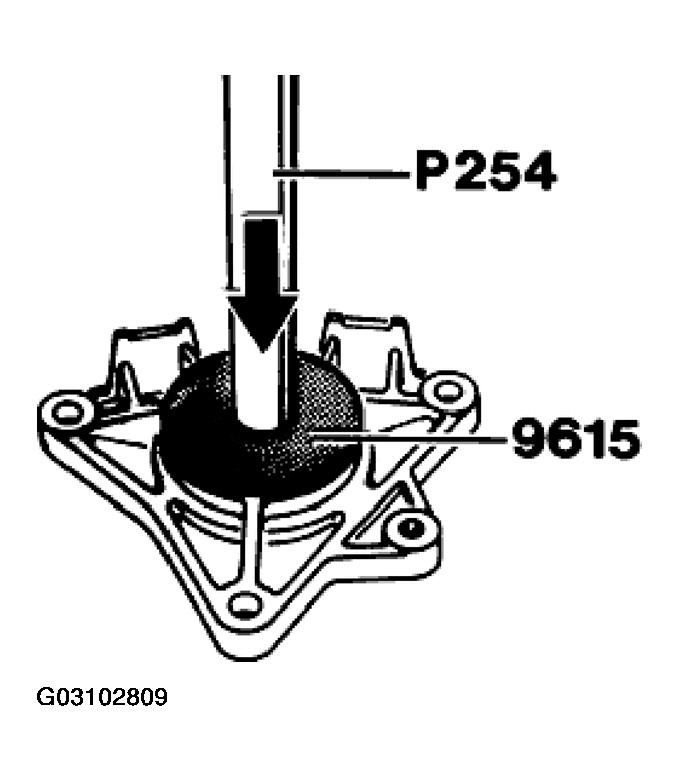

Fig 1: Pushing In New Sealing Ring For Long Flanged Shaft Using Special Tool
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press mounting saddle with ball bearing onto flanged shaft.

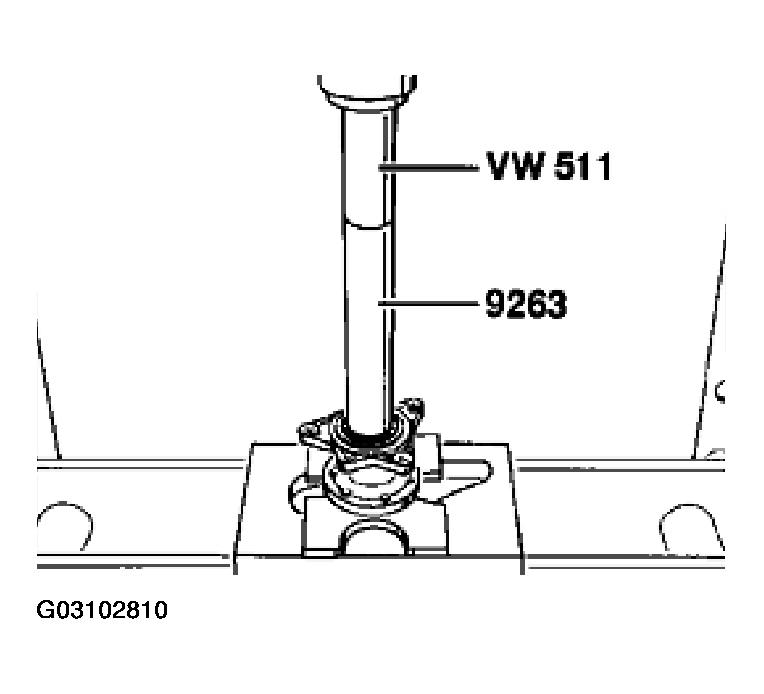

Fig 2: Pressing Mounting Saddle With Ball Bearing Onto Flanged Shaft
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Insert snap ring.
Install flanged shaft; check and top up transmission oil in final drive.
