Removing And Installing Final Drive/Transmission Housing Double Sealing Ring: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

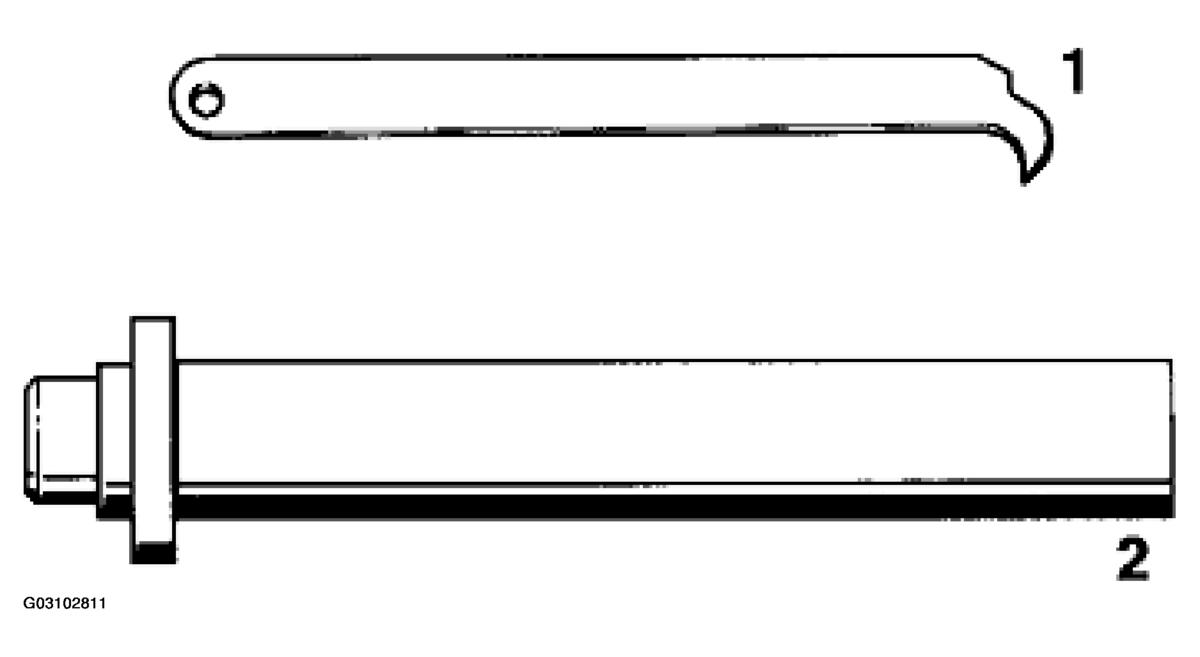

Fig 1: Identifying Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS DESCRIPTION

No.

Designation

Special Tool

1⁽¹⁾

Hook VW

681

2⁽¹⁾

Pressure piece

3383

⁽¹⁾

Fig 1 .

NOTE:

A defective double sealing ring allows ATF or transmission oil to escape via the middle vent opening of the shaft seal (between the two sealing lips) into the converter bell housing.
A defective double sealing ring can also let ATF enter the differential. The latter is overfilled, and oil emerges at the differential vent opening.
