Removing And Installing Final Drive/Transmission Housing Double Sealing Ring: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unbolt rear wheels.
  2. Remove differential. See REMOVING AND INSTALLING THE DIFFERENTIAL (TRANSMISSION G 86)  .
  3. Remove long flanged shaft. See REMOVING AND INSTALLING LONG FLANGED SHAFT  .
  4. Take bearing outer race (1) and adjusting shim (2) out of the transmission housing by hand.
    NOTE: The adjusting shim is calibrated and cannot be exchanged for an approximate substitute.

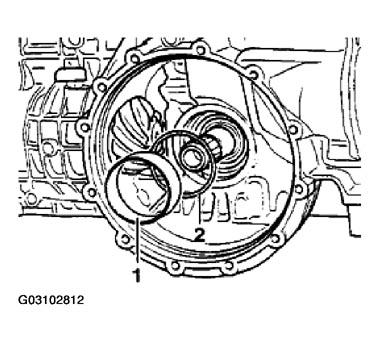

    Fig 1: Removing Bearing Outer Race And Adjusting Shim From Transmission Housing
    G03102812Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Carefully pull out gasket with special tool VW 681.
    NOTE: Special tool VW 681 must be applied behind the two sealing lips of the sealing ring. Do not apply to the circumference of the sealing ring, since otherwise the contact area in the transmission housing will be damaged. While levering it out, guide lever carefully.

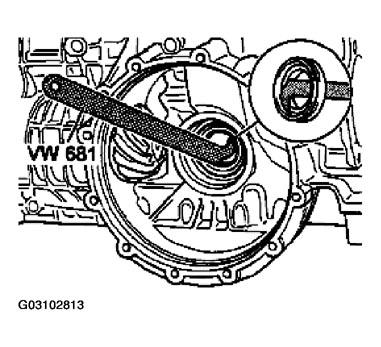

    Fig 2: Pulling Out Gasket With Special Tool VW 681
    G03102813Courtesy of PORSCHE OF NORTH AMERICA, INC.
