Disassembling And Assembling The Differential (Transmission G 86): Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

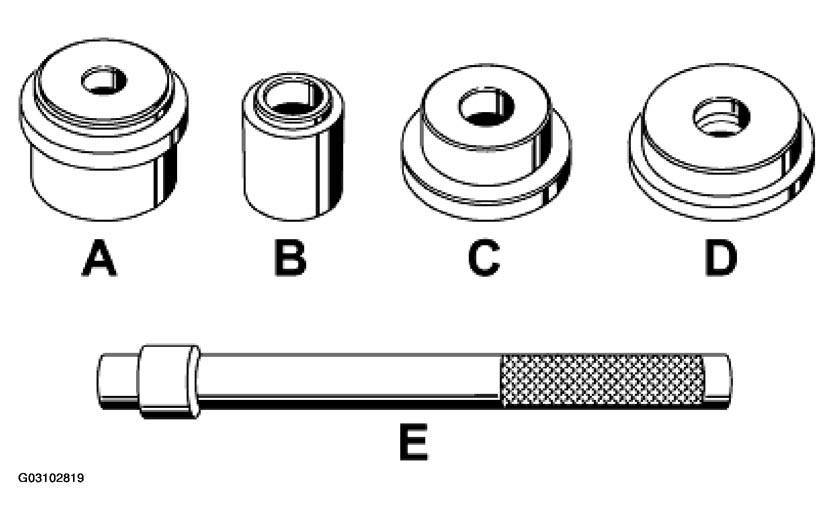

Fig 1: Identifying Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS

Item

Designation

Special tool

A⁽¹⁾

Pressure piece

VW 472/1

B⁽¹⁾

Pressure piece

P263

C⁽¹⁾

Pressure disc

VW 511

D⁽¹⁾

Pressure piece

2050

E⁽¹⁾

Drive-in mandrel

VW 295

⁽¹⁾

Fig 1 .

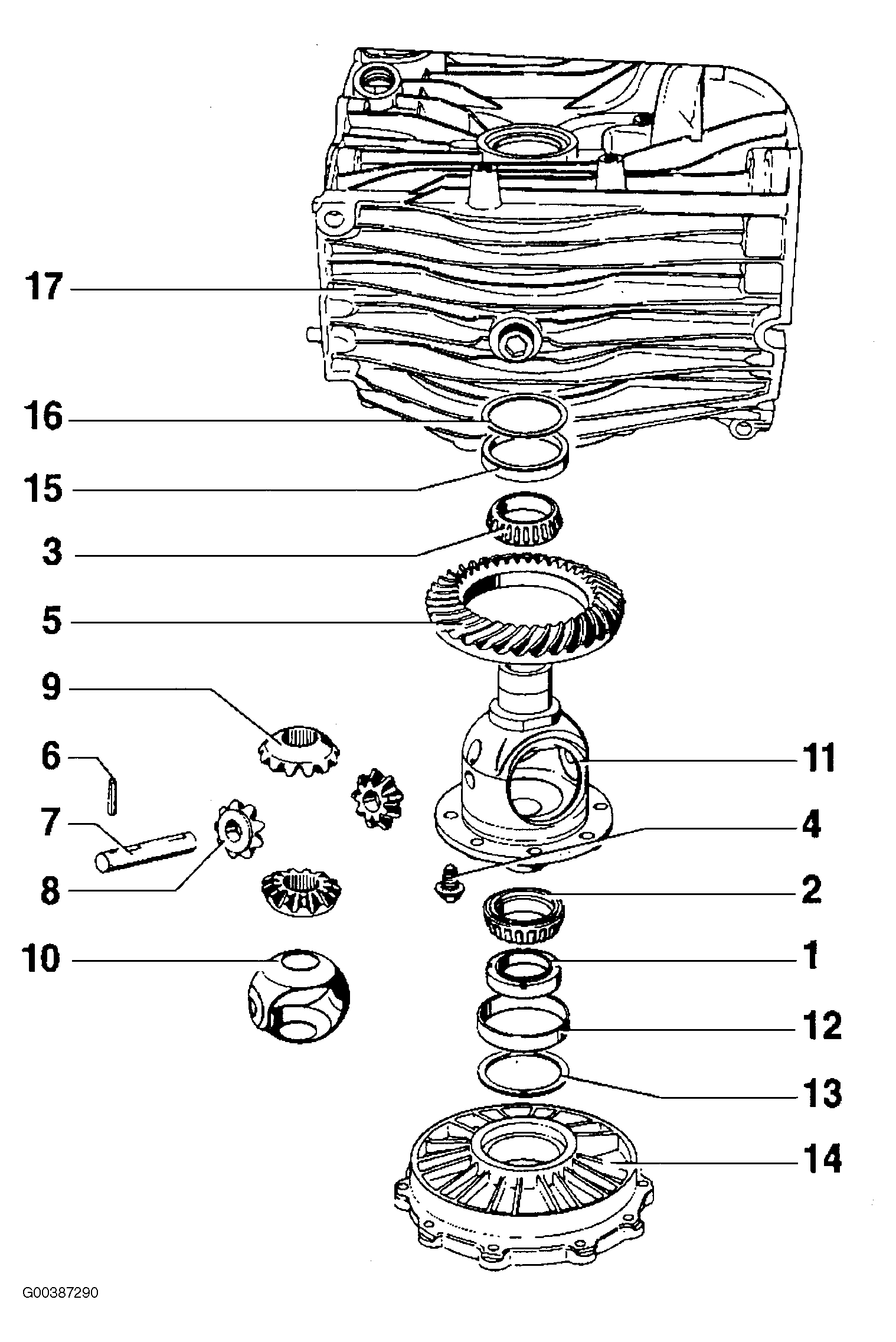

Fig 2: Exploded View Of Differential Assembly (Transmission G 86)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DIFFERENTIAL COMPONENT DESCRIPTION CHART (TRANSMISSION G 86)

No.

Designation

Qty.

Removal

Installation

Speedometer-drive gear

1⁽²⁾

2⁽²⁾

Tapered roller bearing inner race ⁽¹⁾

Remove with commercially available two-arm puller and special tool P 263

Heat to approx. 100°C, put into position and press again after heat exchange

3⁽²⁾

Tapered roller bearing inner race ⁽¹⁾

Same as No. 2

4⁽²⁾

Crown wheel screw

Always replace. The thread must be dry and grease-free. Tighten crosswise with 60 Nm (44 ft.lb) and then continue turning with a rotational angle of 45°C.

5⁽²⁾

Crown wheel ⁽¹⁾

Force off with a mandrel through the threaded holes

If required, heat up to approx. 100°C

6⁽²⁾

Dowel pin

Drive in the correct position

7⁽²⁾

Axle

8⁽²⁾

Differential bevel gear (small)

9⁽²⁾

Differential bevel gear (large)

10⁽²⁾

Thrust washer assembly

Insert with gear oil

11⁽²⁾

Differential housing ⁽¹⁾

12⁽²⁾

Tapered roller bearing outer race

Drive out using a suitable aluminum or copper mandrel (phi 6...8 mm)

Press in with special tools VW 511 (or 2050) and VW 295

13⁽²⁾

Adjusting shim "S1"

Note the thickness for installation

Remeasure the thickness if necessary

14⁽²⁾

Cover for final drive ⁽¹⁾

Seal with Loctite 574

15⁽²⁾

Tapered roller bearing outer race

Same as No. 12

Drive in with special tool VW 472/1

16⁽²⁾

Adjusting shim "S2"

Same as No. 13

17⁽²⁾

Transmission housing ⁽¹⁾

⁽¹⁾	If the parts are replaced, readjustment is necessary

⁽²⁾	For explanation see Fig 2
