Adjusting The Drive Set (Transmission G 86): Tools
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

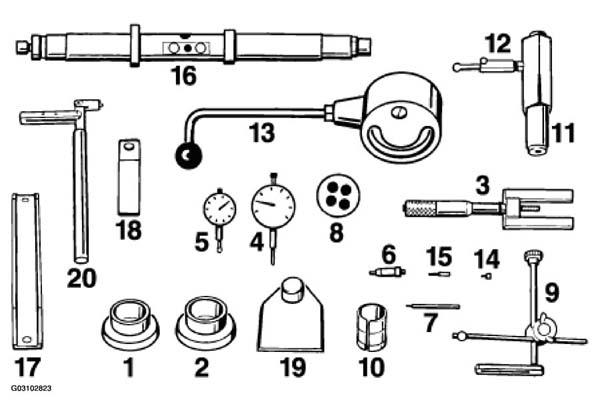

SPECIAL TOOLS DESCRIPTION
| No. | Designation | Special tool | Explanation | ||
|---|---|---|---|---|---|
| 1(1) | Centring disc | VW 385/4 | |||
| 2(1) | Centring disc | VW 385/3 | |||
| 3(1) | Universal master gauge | VW 385/30 | |||
| 4(1) | Dial gauge | - | Commercially available | ||
| 5(1) | Dial gauge | - | Commercially available, measuring range 3 mm | ||
| 6(1) | Gauge plunger | VW 385/14 | |||
| 7(1) | Dial gauge extension | VW 385/56 | 30 mm long | ||
| 8(1) | End plate | VW 385/17 | |||
| 9(1) | Gauge holder | VW 387 | |||
| 10(1) | Clamping sleeve | VW 521/12 | |||
| 11(1) | Adjustment device | VW 521/4 | |||
| 12(1) | Measuring lever | VW 388 | |||
| 13(1) | Torque gauge | - | Commercially available 0...600 Ncm | ||
| 14(1) | Dial gauge extension | VW 382/10 | 6.0 mm long | ||
| 15(1) | Dial gauge extension | VW 385/15 | 9.3 mm long | ||
| 16(1) | Measuring mandrel | VW 385/1 | |||
| 17(1) | Holder | VW 792/1 | |||
| 18(1) | Holder | 3177 | |||
| 19(1) | End plate | VW 385/33 | |||
| 20(1) | Lever | VW 296 | |||
|
|||||
