KD Drive Sets

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Identification "0937" means Oerlikon drive set with the transmission ratio of 35 : 9
  2. Pairing number (312) of the drive set.
  3. Deviation "r" referred to the master gauge of the special inspection machine used in production. The deviation "r" is always stated in 1/100 mm.

    Example: "25" means r = 0.25 mm

    Ro Length of the used master gauge of the special inspection machine. "Ro" = 59.65 mm

    R Actual dimension between the crown wheel axis and the front side of the output shaft at the point of maximum smooth running for this one drive set.

    Vo Hypoid offset

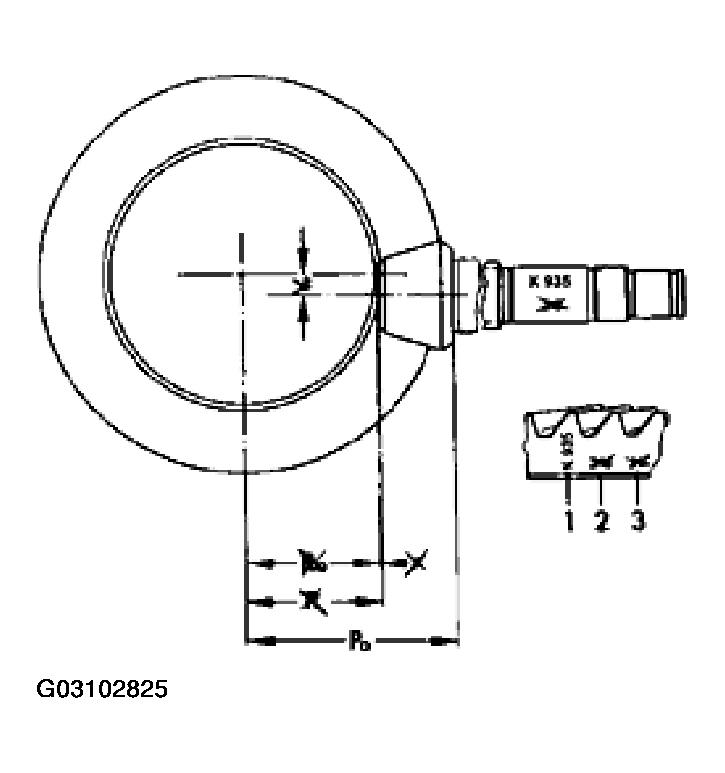

    Fig 1: Identifying Drive Set (Ring & Pinion) Adjustment Labeling (KD Drive Sets)
    G03102825Courtesy of PORSCHE OF NORTH AMERICA, INC.
