Removing And Installing Selector Knob: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lever off locking button with an angled pipe. The locking button must be pressed so that the pipe section can be inserted between the shift lever and the locking button. To do this, turn the ignition key to "1" position.

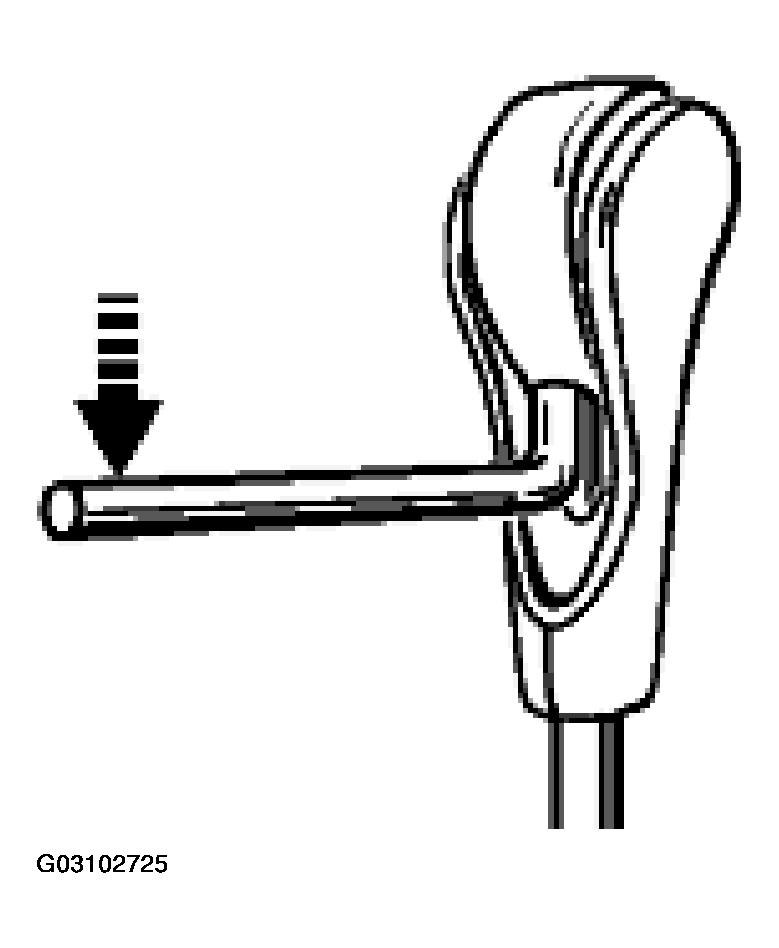

    Fig 1: Levering Off Locking Button With An Angled Pipe
    G03102725Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Remove the compression spring and spring clip and pull off the selector knob.

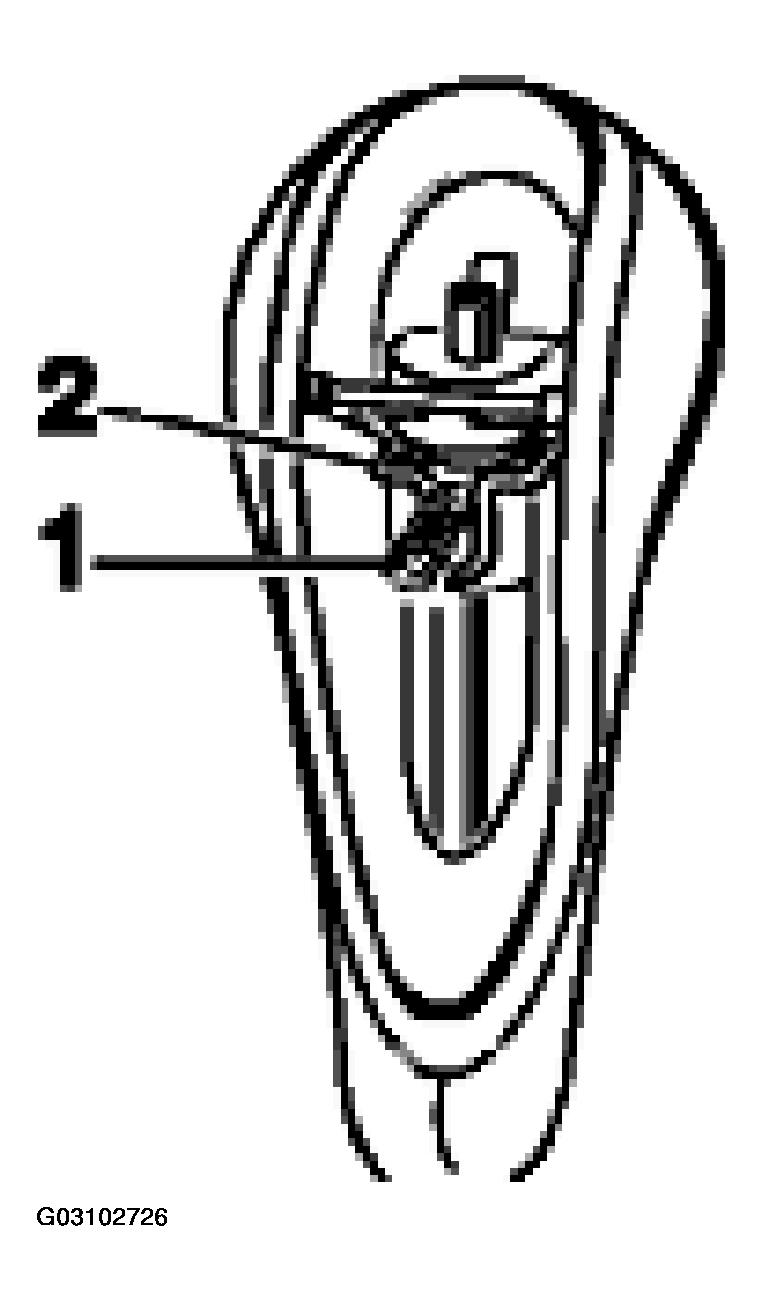

    Fig 2: Removing Compression Spring And Spring Clip
    G03102726Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Compression spring (conical as of 12.10.98)
  2. Spring clip
