Removing And Installing Sealing Ring For Selector Shaft: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove multifunction switch. See REMOVING AND INSTALLING MULTIFUNCTION SWITCH  .
  2. Detach push rod at selector lever.
  3. Drive out roll pin (1) until the selector lever can be pulled off from the shaft.

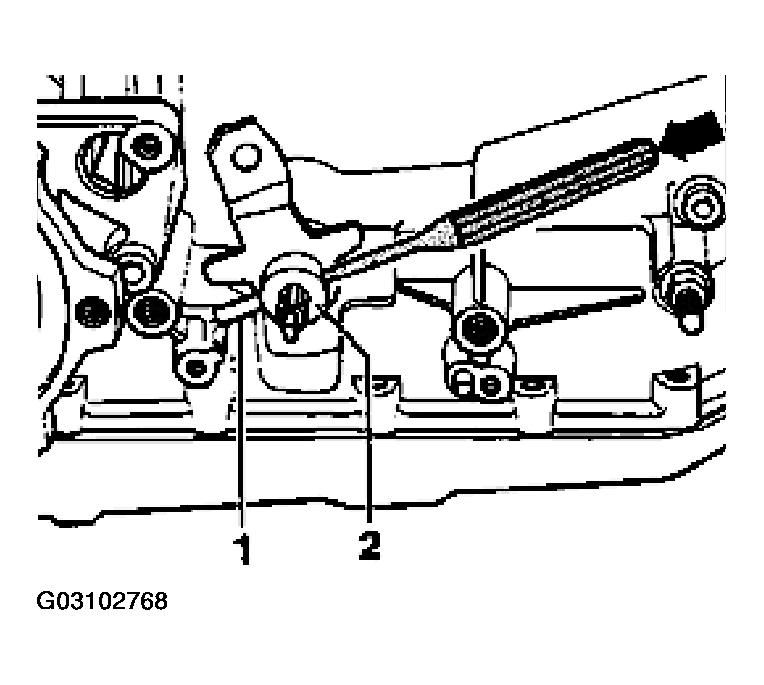

    Fig 1: Driving Out Roll Pin From Selector Lever
    G03102768Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pierce sealing ring with small screwdriver and pull out.

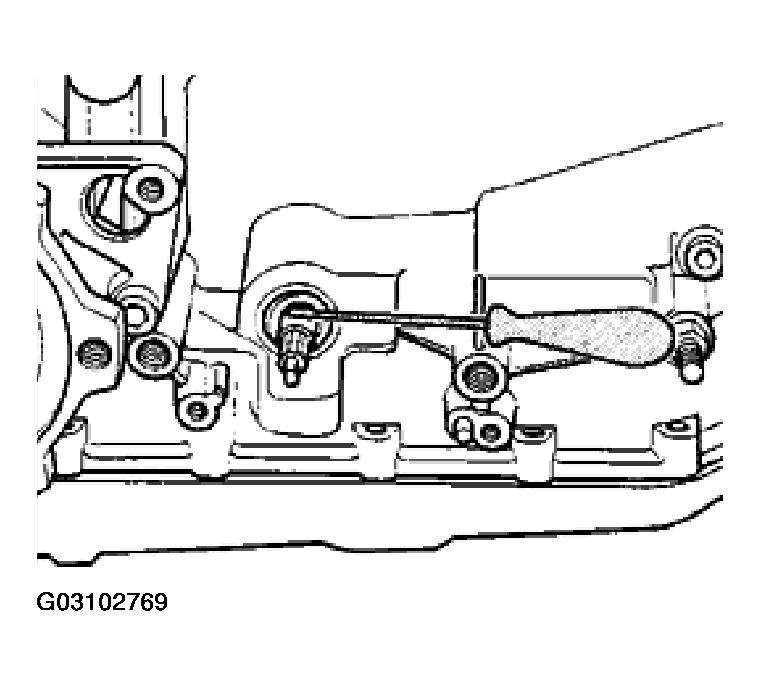

    Fig 2: Piercing Sealing Ring With Small Screwdriver
    G03102769Courtesy of PORSCHE OF NORTH AMERICA, INC.
