Removing And Installing Sealing Ring For Selector Shaft: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Thinly coat sealing lip and circumference of sealing ring with Vaseline.
Drive in sealing ring with special tool 3385 as far as the mounting face.

NOTE:

The open side faces the transmission.

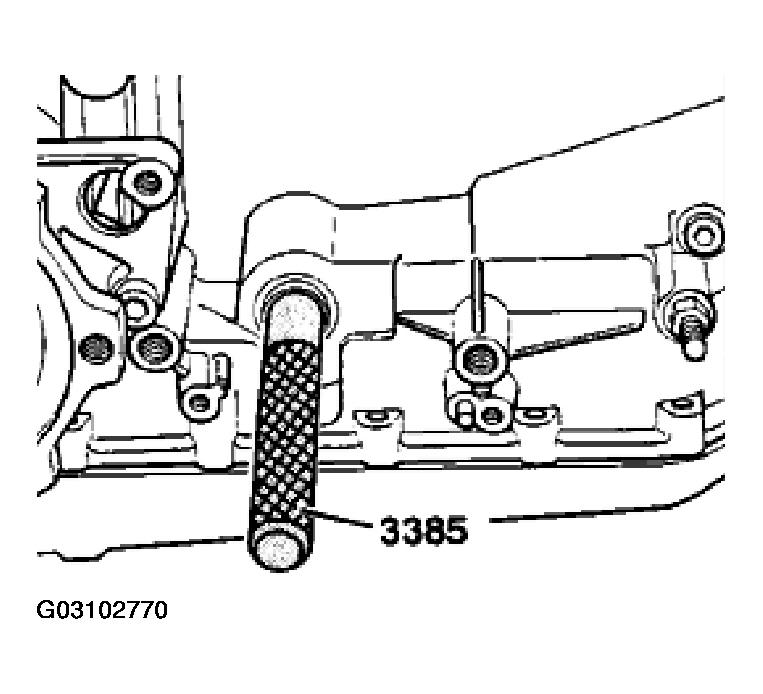

Fig 1: Installing Sealing Ring Using Special Tool (3385)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
