Removing And Installing Inner Oil Tube: Removal
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
Defective toroidal sealing rings at inner oil tube let ATF enter the differential, which becomes overfilled, and oil emerges from the vent of the differential.
In general, a removed oil tube should be replaced.
The oil tube must be inserted only with special tool 3381. Otherwise there is a danger of leakage due to bending of the oil tube.
- Remove hydraulic control unit.

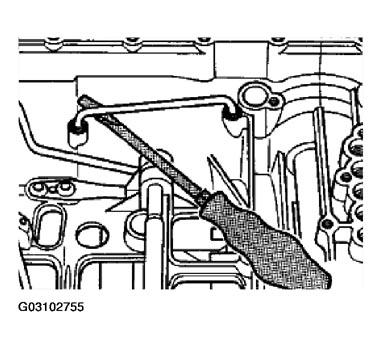

- Lever out oil tube with a screwdriver.
