Removing And Installing Inner Oil Tube: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Always replace oil tube and toroidal sealing rings.
  1. Provide oil tube with new toroidal sealing rings and give rings a thin coating of Vaseline.
  2. Insert oil tube into special tool 3381 and push into transmission housing as far as the stop on the special tool. The open side of the special tool should face the outer wall of the transmission.

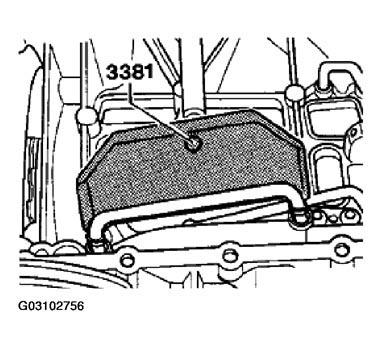

    Fig 1: Inserting Oil Tube Into Special Tool (3381)
    G03102756Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
  • Do not tilt oil tube. Drive in both tube ends equally.
