Removing And Installing Gasket For Spur-Gear Cover: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove silencers.
  2. Unscrew silencer holder from transmission.

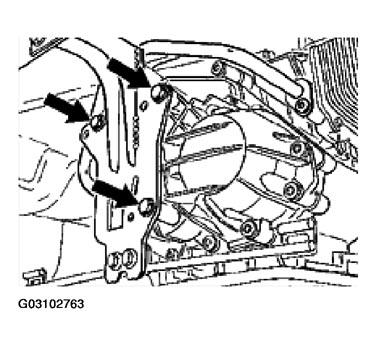

    Fig 1: Unscrewing Silencer Holder From Transmission
    G03102763Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Clamp shut flow-side coolant hose with special tool 3094.

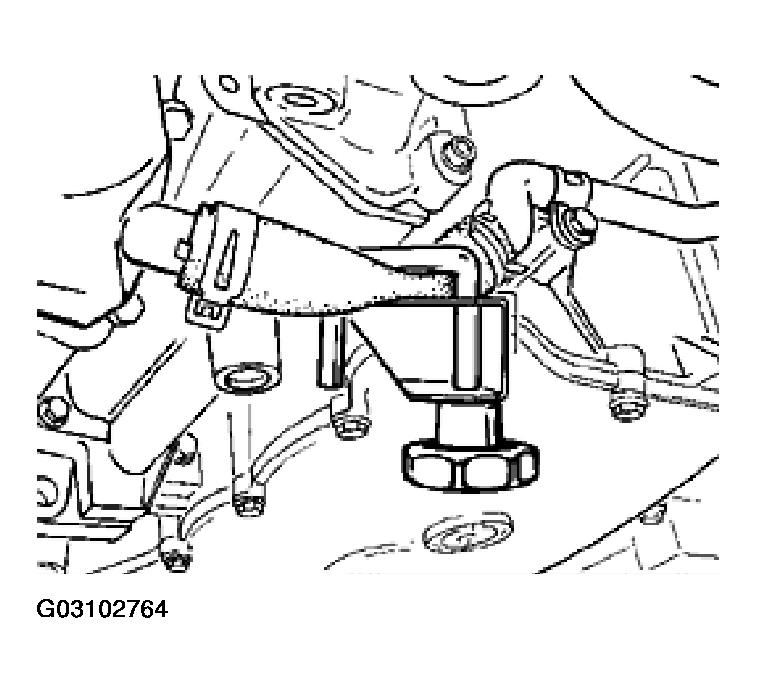

    Fig 2: Clamping Shut Flow-Side Coolant Hose With Special Tool
    G03102764Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Unscrew flow-side coolant hose at port plate.

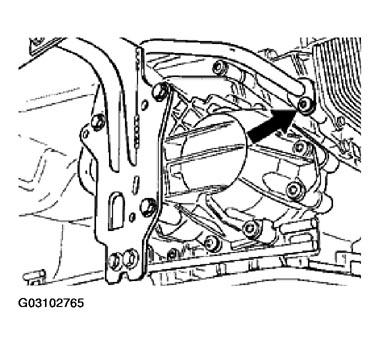

    Fig 3: Unscrewing Flow-Side Coolant Hose At Port Plate
    G03102765Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Place oil collection pan under the transmission.
  6. Unscrew screws of spur-gear cover.
    NOTE:
    • Slowly and carefully remove cover from transmission housing. Otherwise the spur gears may fall out of the transmission housing. Spur gears that have fallen onto the floor must not be reinstalled. The gears must be exchanged in this event.
  7. Remove cover and secure spur gears against falling out.
NOTE:
  • If the spur gears have nonetheless been removed, when they are being replaced the markings must face outwards (away from transmission).
