Removing And Installing Gasket For Spur-Gear Cover: Installing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure faultless seating of the dowel sleeve.
- Screw two centering pins (special tool 9321) into the transmission housing, put new gasket on and fit cover.
- Tighten screws in two steps.

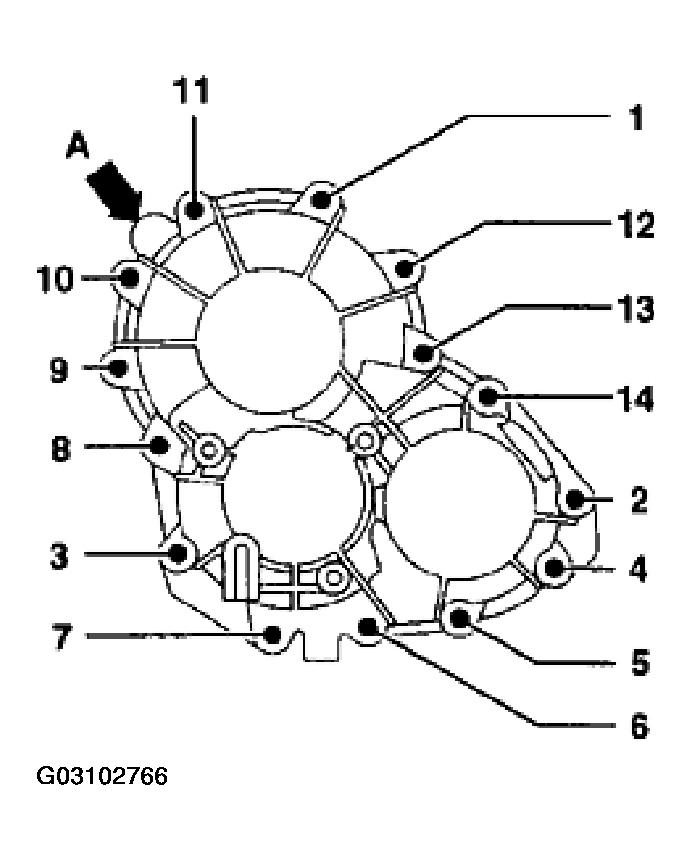

1st step: Tighten screws 1, 2 and 3 by hand. Ensure that the gap between cover and transmission housing is equally reduced all round.
2nd step: Tighten screws 1...14 in the stated sequence to 23 Nm (17 ft.lb).
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- A Dowel sleeve
- Check and top up ATF level. See CHECKING AND TOPPING UP ATF FLUID .
