Adjusting Selector Lever Cable

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move selector lever and transmission selector shaft to position "P".
  2. Adjust cable length at mounting head so that the cable can be fitted free of tension.

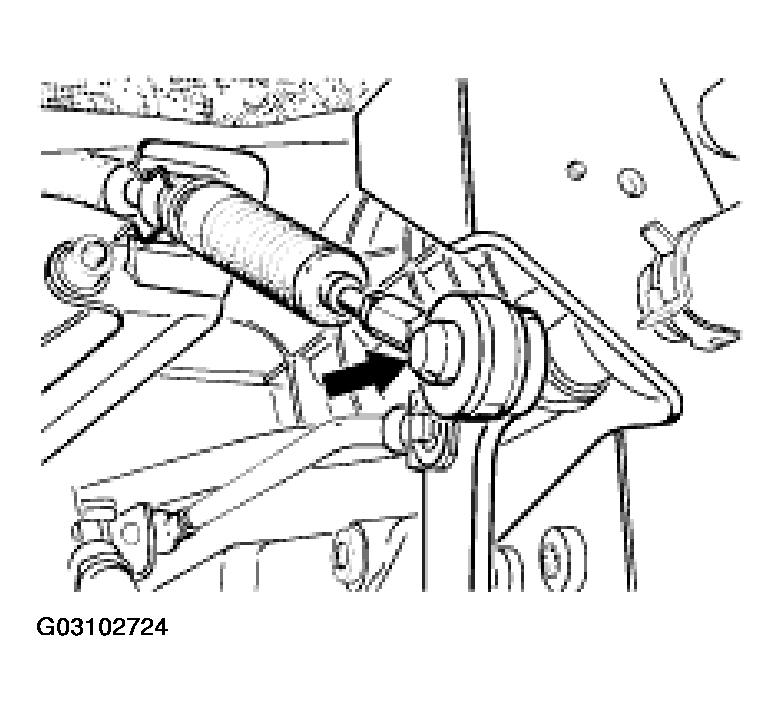

    Fig 1: Attaching Selector Lever Cable At Mounting Head
    G03102724Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Check adjustment. To do this, select all gears and check that the gear is indicated in the right-hand instrument cluster. Also change gate from "D" to "M". A straight movement must be possible without catching.
