Removing And Installing Sealing Ring For Input Shaft: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Remove transmission, refer to REMOVING AND INSTALLING TRANSMISSION, BOXSTER .
Remove release lever for clutch.
Remove guide tube for release bearing.
Screw puller 9629/1 securely into the sealing ring.

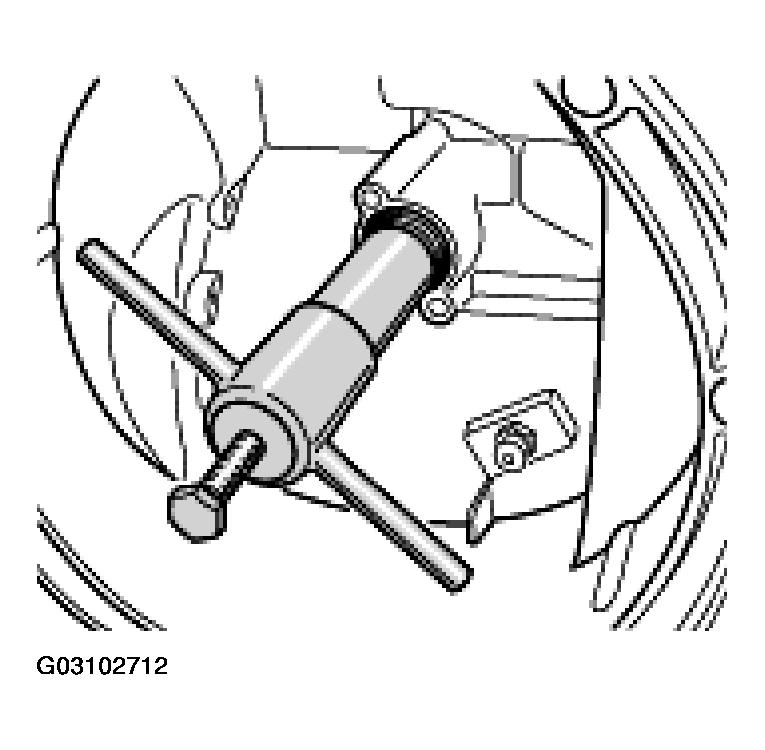

Fig 1: Screwing Puller 9629/1 Into The Sealing Ring
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Screw in hexagon-head bolt (see Fig 2 ) and pull out the sealing ring.

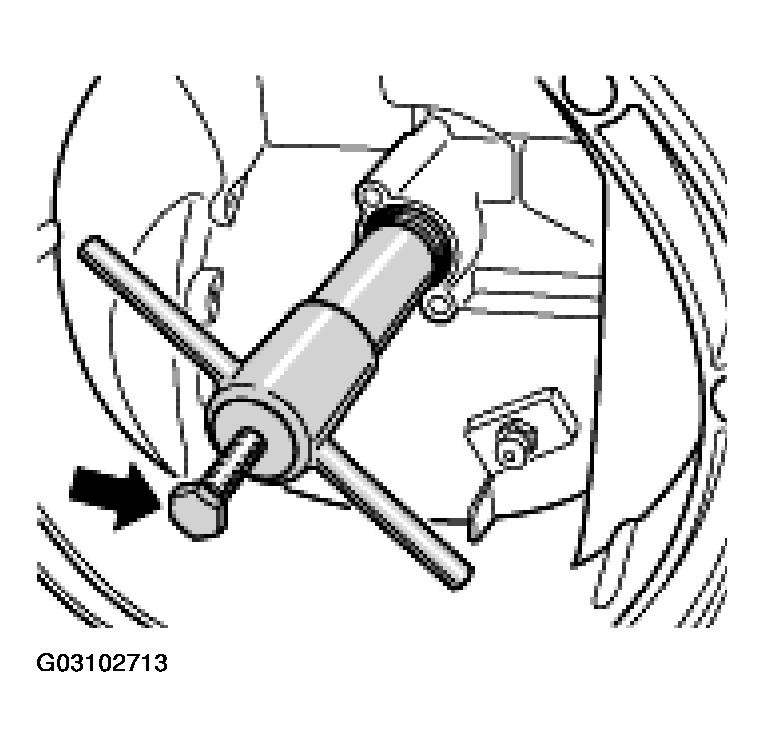

Fig 2: Pulling Out The Sealing Ring

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The coil spring must be pulled off the input shaft using a wire hook if the spring jumps down when the sealing ring is removed.
