Removing And Installing Sealing Ring For Input Shaft: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Push assembly sleeve 9255 onto the teeth of the input shaft.

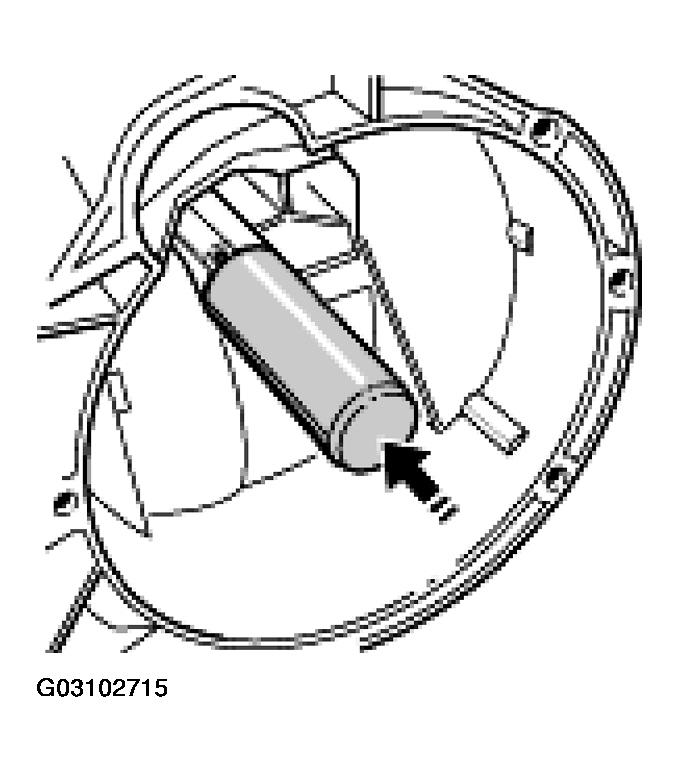

Fig 1: Pushing Assembly Sleeve Onto Teeth Of Input Shaft
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fill the space between the dust and sealing lips on the sealing ring with grease (e.g. Liqui-Moly).
Drive sealing ring in until it is secure using pressure piece 9628.

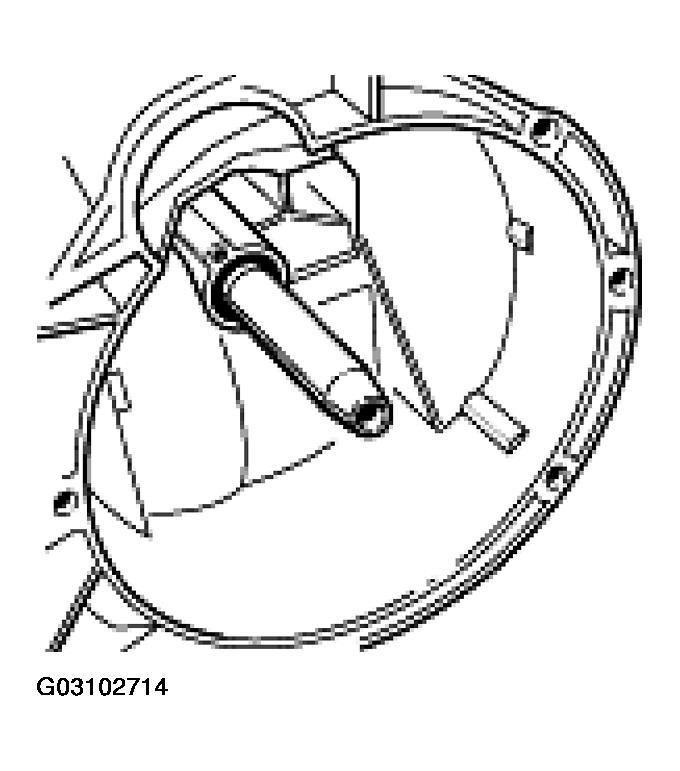

Fig 2: Driving In Sealing Ring
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install guide tube for release bearing.
Always replace fastening screws and tighten to a tightening torque of 24 Nm (18 ft.lb.)
Install release lever with guide tube for release bearing.
Clean teeth of the input shaft and grease with a thin coat of Olista Longtime 3EP.
