Instructions For Disassembly And Assembly (Transmission G86): Disassembly

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When replacing the tapered roller bearings (-1- and -27-), determine the installation position before removing the output shaft refer to ADJUSTING THE DRIVE SET (TRANSMISSION G 86) .

Press off inner race of tapered roller bearing. Use the outer race to do this.

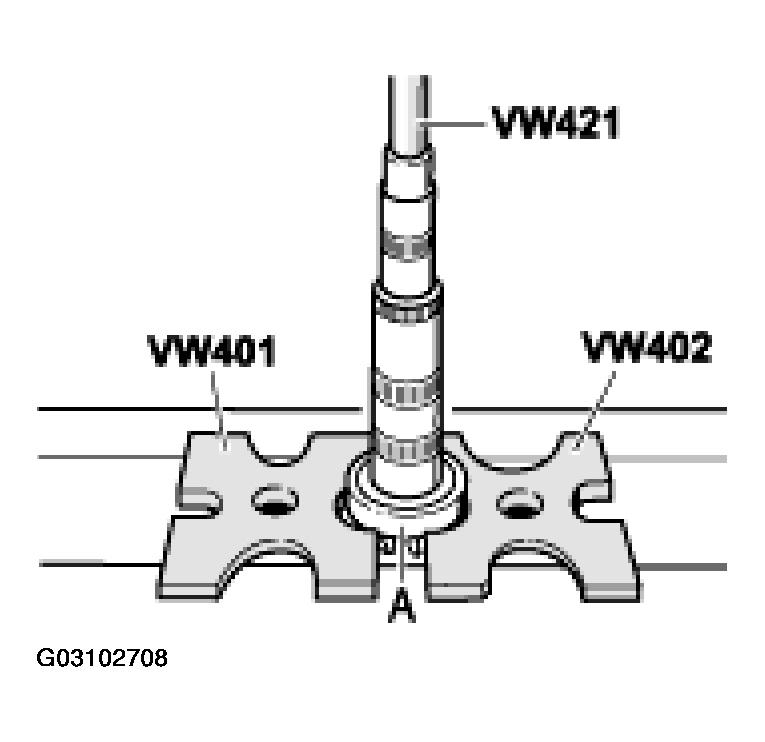

Fig 1: Pressing Off Inner Race Of Tapered Roller Bearing

Courtesy of PORSCHE OF NORTH AMERICA, INC.
