Adjusting The Input Shaft (Transmission G 86)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Clamp the input shaft in the vice with protective jaws.
Put the special tool 3167 onto the 3rd gear and position the transmission housing onto the special tool via the input shaft.

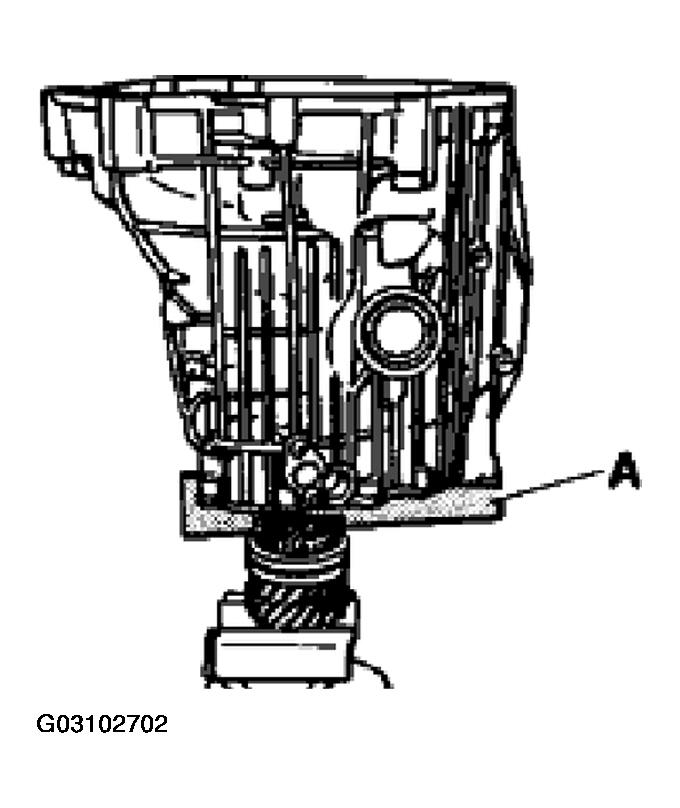

Fig 1: Positioning Transmission Housing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
1. Special tool 3167

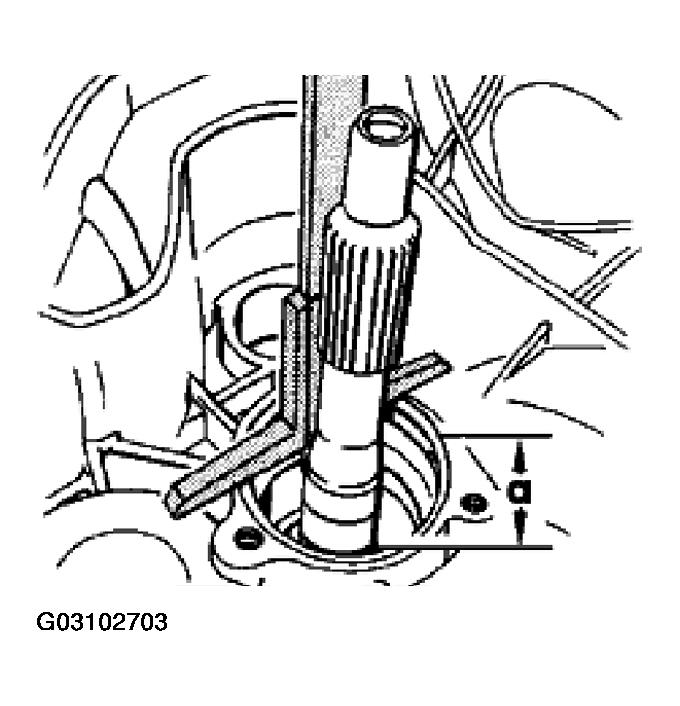

With a depth gauge, measure from the housing to the lower input shaft groove. See Fig 2 .

Fig 2: Measuring Dimension A Using Depth Gauge
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Dimension "a" = 28.5 mm

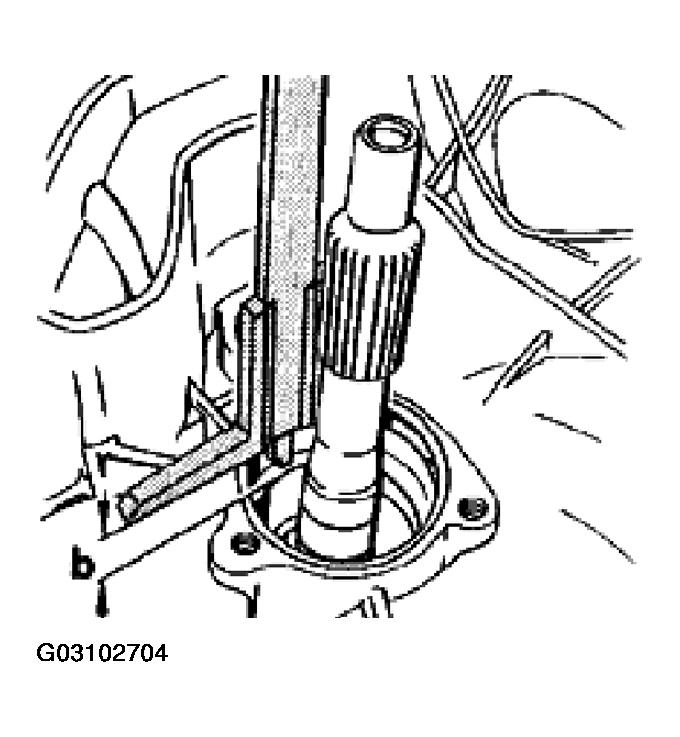

With a depth gauge, measure from the housing to the bearing surface of the ball bearing. See Fig 3 .

Fig 3: Measuring Dimension B Using Depth Gauge
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Dimension "b" = 26.8 mm
Measure the thickness of the lower snap ring (No. 8, in Fig. 30 in DISASSEMBLING AND ASSEMBLING TRANSMISSION G 86 ).
x = a - b

= 28.5 - 26.8 mm

= 1.70 mm

Measure the thickness of the snap ring in accordance with the table:

SNAP RING THICKNESS SPECIFICATIONS - INPUT SHAFT

Measurement result (mm)	Thickness (mm)
1.48...1.56	1.54
1.57...1.65	1.63
1.66...1.74	1.72
1.75...1.83	1.81
1.84...1.92	1.80
1.93...2.01	1.99
2.02...2.10	2.08
2.11...2.20	2.17
2.21...2.27	2.25
2.28...2.35	2.33

Force the snap ring and ball bearing onto the input shaft with the special tool 30-100.
Determine the thickest snap ring which can still just be used.

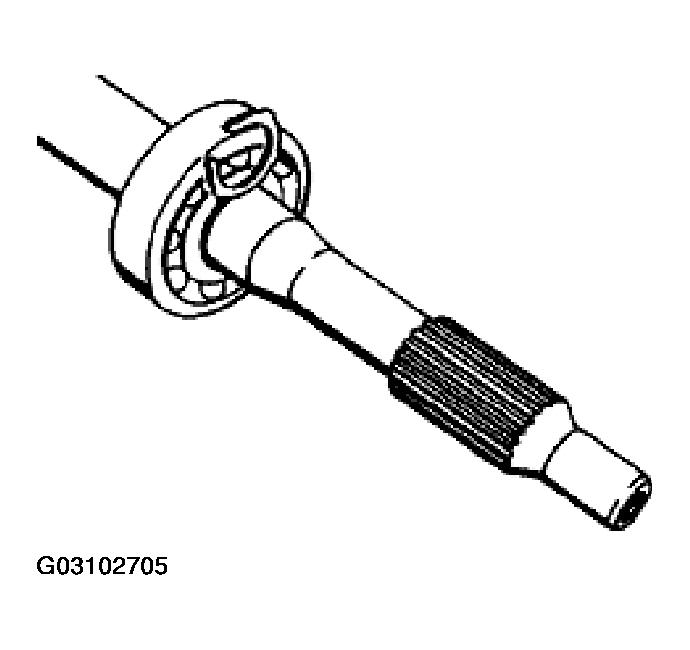

Fig 4: Determining Thickest Snap Ring For Input Shaft

Courtesy of PORSCHE OF NORTH AMERICA, INC.
