Removing And Installing Shift And Selector Cables: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

The shift and selector cables are designed so that installation and adjustment are a single work step.

Preconditions for this are:

Special tool 9619 must be fitted to fix the shift lever.
The transmission must be in neutral.

NOTE: Shift cables must not be excessively bent or kinked.

Guide shift cables from the passenger compartment to the transmission through the rear wall and fasten on the transmission. See Fig 1 . At the same time, the shift cable end pieces and support brackets must audibly and perceptibly engage, and the cotter pin heads on retaining clip "A" must point downward.
NOTE: Clean securing screw "F" with solvent naphtha, coat the first 10 threads with Loctite 270, and tighten the screw to 23 Nm (17 ft.lb).

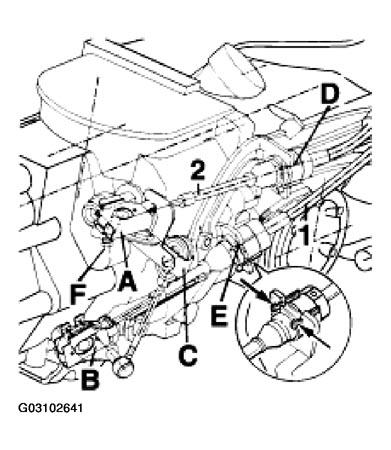

Fig 1: Attaching Shift Cables Onto Transmission
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fit locking piece in the rear wall.

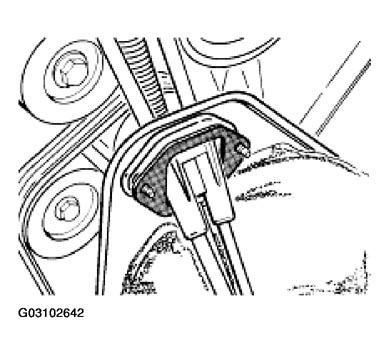

Fig 2: Fitting Locking Piece In Rear Wall
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Route the shift and selector cables and B+ wire correctly, and fasten the parking brake lever support. Tightening torque of the fastening nuts: 10 Nm (7.5 ft.lb).

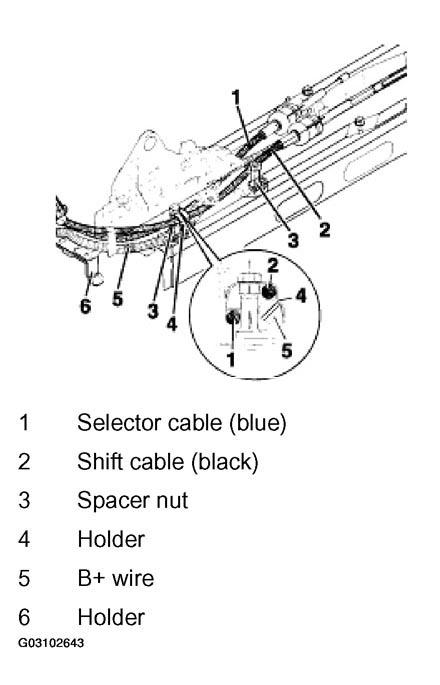

Fig 3: Routing Shift And Selector Cables
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- Correct routing of the shift and selector cables is a prerequisite for precise shifting.
Fasten shift and selector cables on the shift console. See Fig 4 .
- Fit support bracket sleeves (5) in the correct position. It must be possible to hear and feel them engage.
- Engage shift and selector cables in the adjusters (3) without tension and close the adjusters.

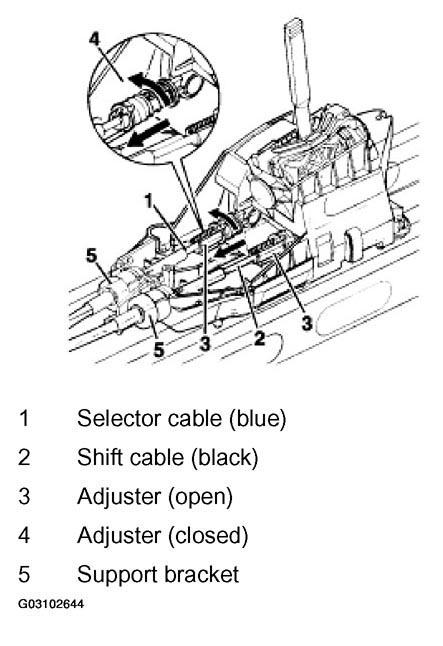

Fig 4: Engaging Shift And Selector Cables In The Adjusters
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove special tool 9619 and shift through all gears as a test.
Clip in shift console cover.
Fit rear wall cover.
Adjust parking brake and install center console.
