Removing And Installing Closure Cap For Selector Force Mechanism: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Remove transmission, see REMOVING AND INSTALLING TRANSMISSION, BOXSTER S .
Make sure that transmission is in neutral.
Unscrew fastening screw for gear housing A. See Fig 1 .

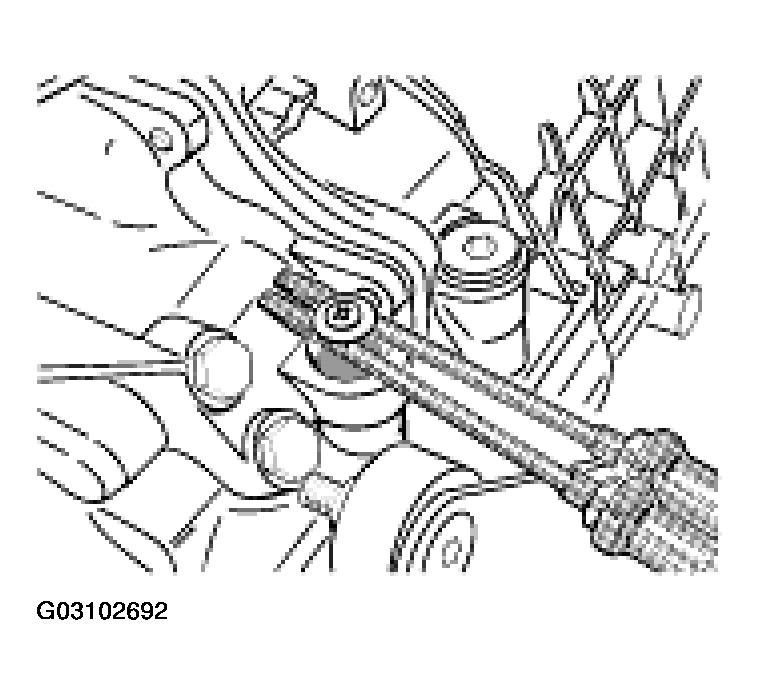

Fig 1: Unscrewing Fastening Screw For Gear Housing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove snap ring B using pliers. See Fig 2 .

Fig 2: Locating Snap Ring B
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Drill a 3.5-mm hole in the center of the closure cap (coat the drill bit with viscous grease so that the drilling chips do not fall into the hole).
Screw in a 4.8 x 25 sheetmetal screw with a large washer.
Lever out the closure cap with two screwdrivers.

Fig 3: Levering Out Closure Cap With Two Screwdrivers
Courtesy of PORSCHE OF NORTH AMERICA, INC.
