Instructions For Disassembly And Assembly: Disassembly

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Remove the outer race for the small tapered roller bearing using special tools VW 771, VW 771/15 and a commercially available threaded adapter (M10/M8).

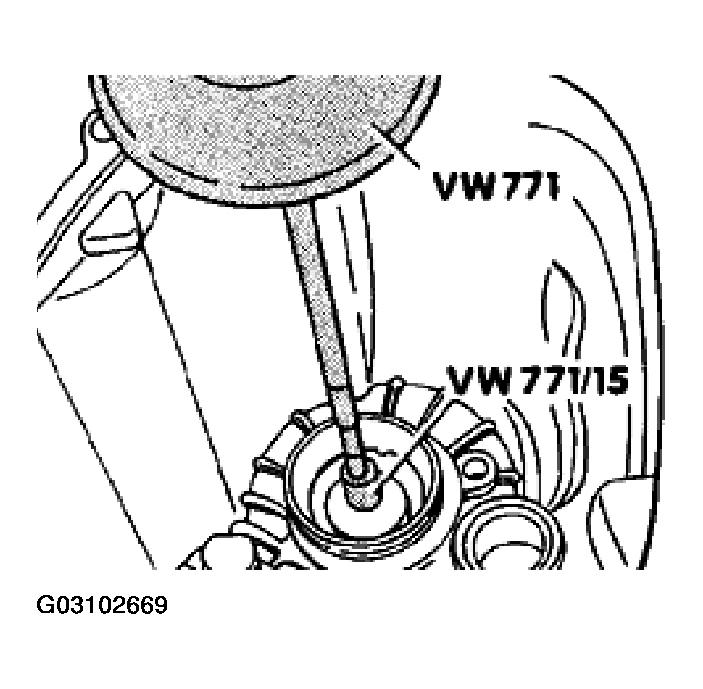

Fig 1: Removing Outer Race For Small Tapered Roller Bearing Using Special Tools
Courtesy of PORSCHE OF NORTH AMERICA, INC.
