Instructions For Disassembly And Assembly (Transmission G 86): Disassembly

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull out the tapered roller bearing outer race with the special tools 3128 and VW 771/29.

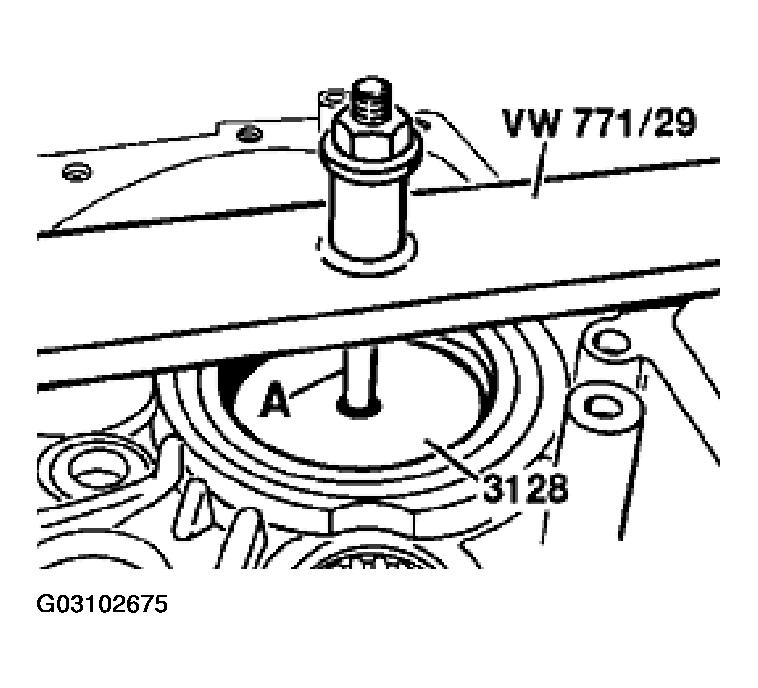

    Fig 1: Pulling Out Tapered Roller Bearing Outer Race With Special Tools
    G03102675Courtesy of PORSCHE OF NORTH AMERICA, INC.
    1. screw M10 x 135
  2. Press out the needle roller bearing for the input shaft with the special tools VW 295 and 40 - 202.

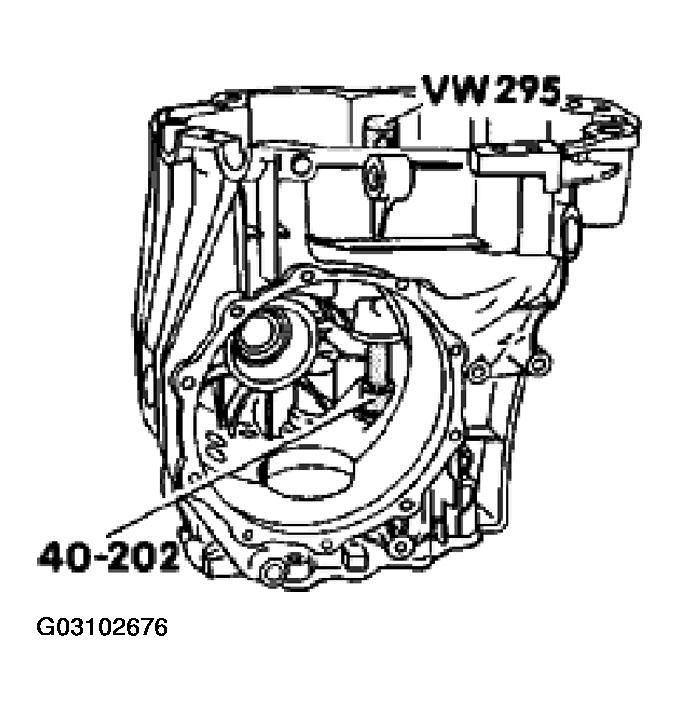

    Fig 2: Pressing Out Needle Roller Bearing For Input Shaft With Special Tools
    G03102676Courtesy of PORSCHE OF NORTH AMERICA, INC.
