Changing And Checking Transmission Oil (Transmission G 86)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
Filling capacity: 2.25 l
Oil type: Hypoid transmission oil SAE 75 W 90
Burmah-Oil TAF 21.
- Remove transverse strut member.
- Unscrew the oil drain plug with a socket wrench insert (for example, Hazet 2567-16) and drain oil with the vehicle horizontal.
- Clean the drain and filler screw.

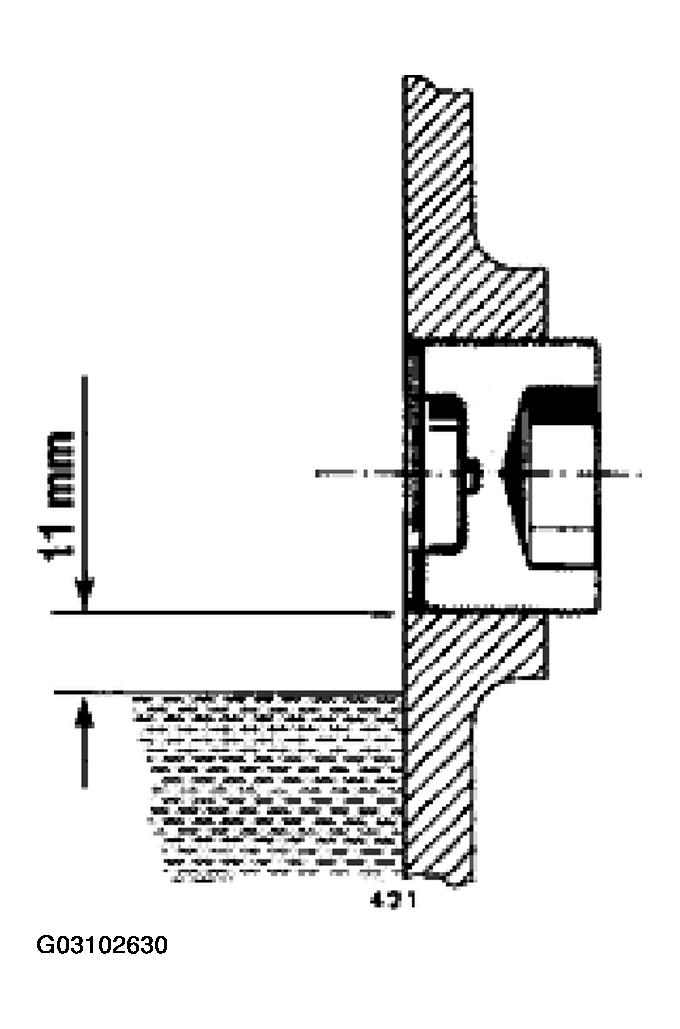

- Fill in 2.25 l transmission oil with the vehicle horizontal.NOTE: At 2.25 l, the oil level is 11 mm below the filler opening.
Use a bent wire hook (shop-made) to check the level.
- Tighten the drain and filler screw with 25 Nm (18 ft.lb).
