Pedal-Group Versions (Distinction)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

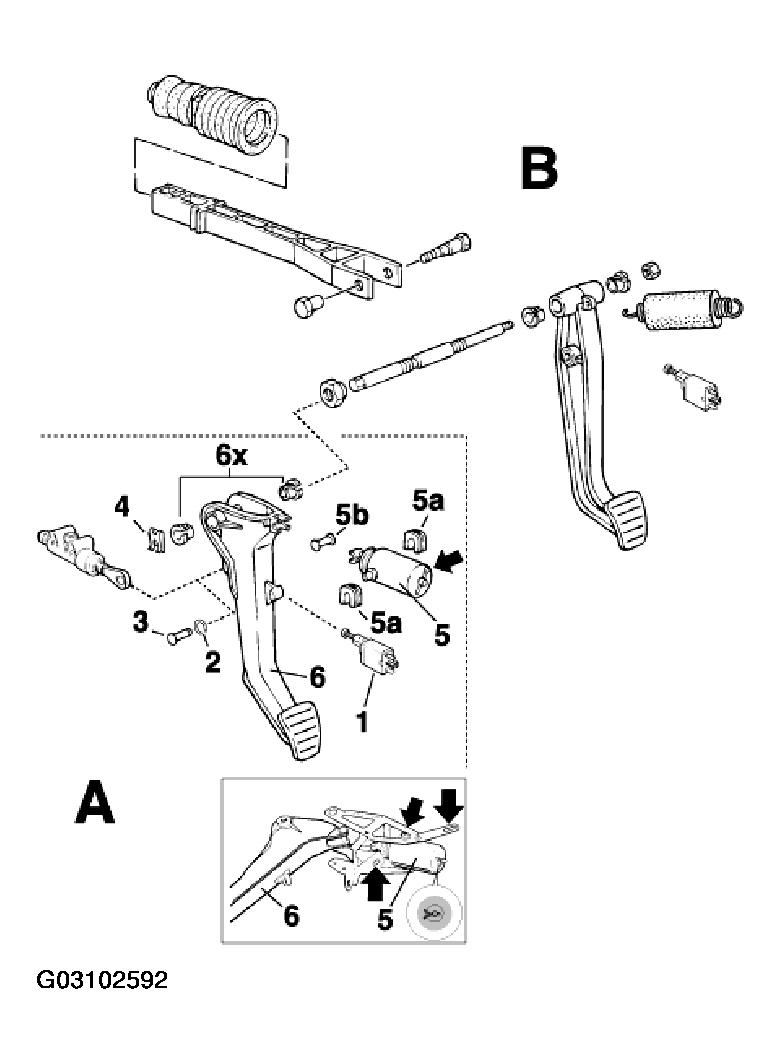

Fig 1: Exploded View Of Clutch Pedal Assembly

Courtesy of PORSCHE OF NORTH AMERICA, INC.

The pedals of Boxster vehicles as of Mod. '98 (as of Mod. W) are identical to the 996 pedals, with the exception of the boost spring and boost-spring bracket.
The Boxster pedals before Mod. '98 (before Mod. W) differ from the pedals as of Mod. '98 in the following respects:

Bracket for clutch boost spring cannot be unscrewed. Consequently, the boost-spring bracket cannot and need not be adjusted. Furthermore, the distance between the bearing pins of the boost spring is 3 mm less.
Pedal bearing axle with different fastening method arrows < (clamping of the steering outer tube and fixing of the pedal-bearing axle).
No return spring on the brake pedal

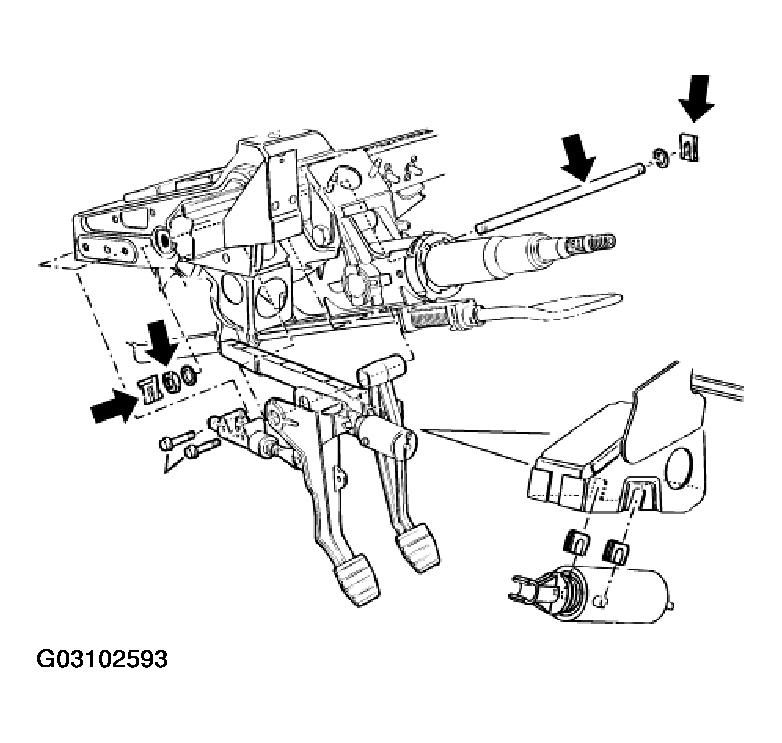

Fig 2: Boxster Pedals Before Mod. 1998
Courtesy of PORSCHE OF NORTH AMERICA, INC.

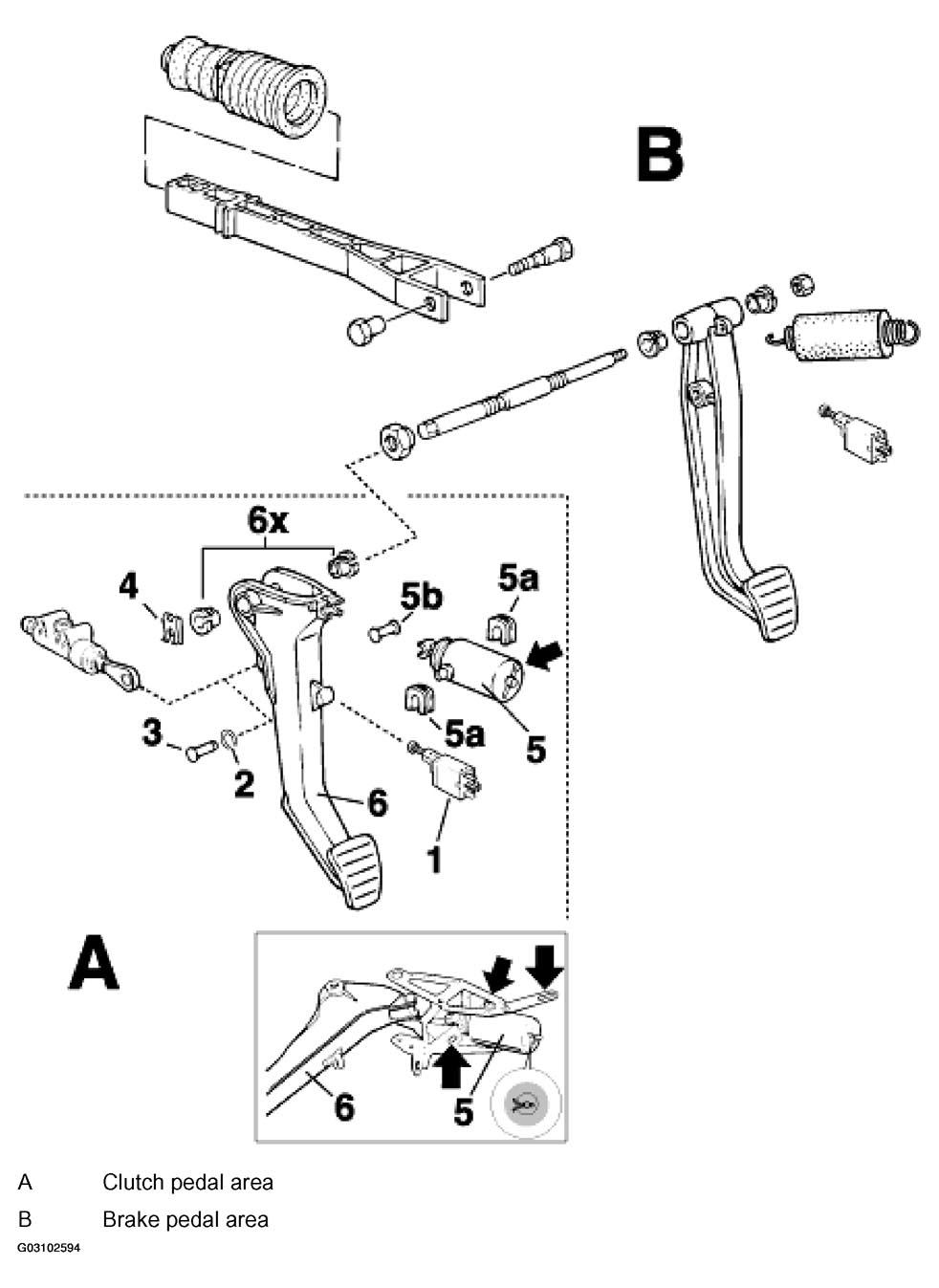

Fig 3: Exploded View Of Boxster Pedals
Courtesy of PORSCHE OF NORTH AMERICA, INC.

REMOVING AND INSTALLING CLUTCH PEDAL PROCEDURE

No.

Designation

Qty.

Removal

Installation

Switch

Release by turning 90°,and pull out of the installation opening

Before installation, pull operating plunger out of the switch as far as it will go

Retaining clip

Replace if necessary

Clamp

Replace

Boost spring with bracket (bracket cannot be removed before Mod. '98)

Secure boost spring with cotter pin (arrow at No. 5) Insert the cotter pin (phi 3 mm) into the assembly bore and bend over ends.
Then undo the three fastening nuts of the bracket (arrows) and remove the boost spring together with bracket and clutch pedal lever (No. 6)

Install the assembly consisting of bracket, boost spring and clutch pedal lever.
Observe proper allocation when replacing the boost spring.⁽¹⁾ Observe assembly and adjustment specification for the bracket (assembly instructions under Installation, step 3)

Boost spring bearing

Replace if necessary. Always observe note with regard to greasing⁽¹⁾

Always observe note with regard to greasing⁽¹⁾

Clutch pedal lever

Remove together with boost spring No. 5 and bracket

Bushings

Remain in the clutch pedal lever

Check, replace if necessary. Lubricate. Use grease specified⁽²⁾

⁽¹⁾	Information can be found in CLUTCH BOOST SPRING: ALLOCATION AND GREASE SPECIFICATION . In the case where lubricating the boost spring bearing surfaces is not permissible, the assembly instructions underINSTALLATION .

⁽²⁾	Lubricate the bushings of the clutch and brake pedals (6X and 14X) with "Optimol, Optitemp LG 2" grease, part No.: 000.043.203.37 (delivery quantity: 80 g tube).
