Disassembling And Assembling
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE

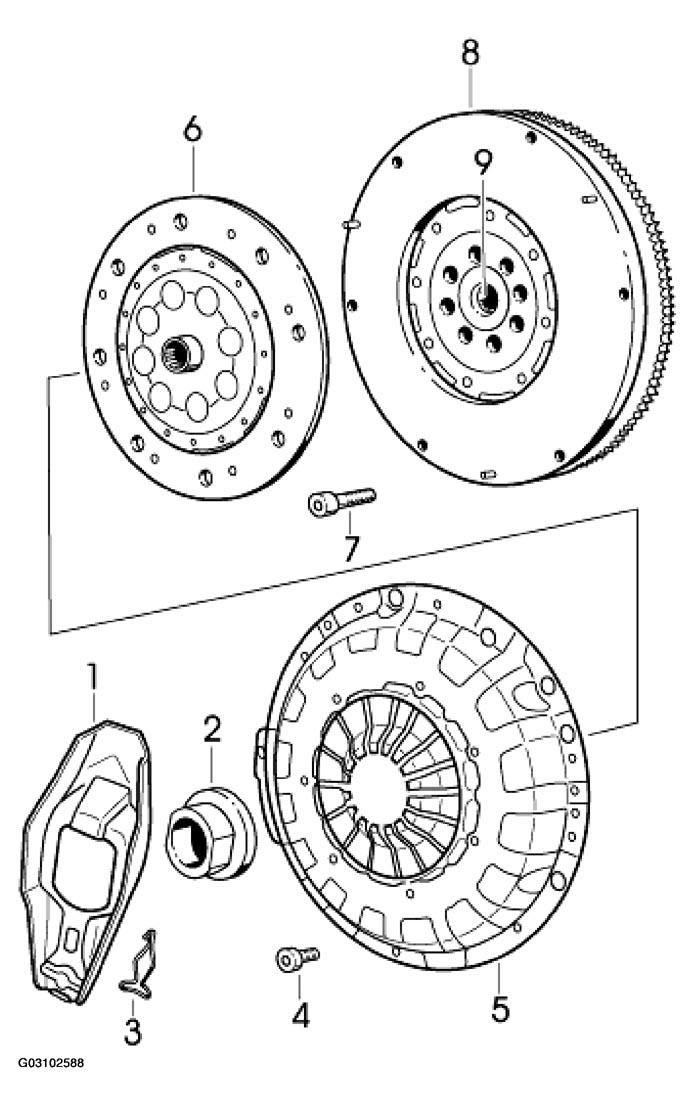

| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Release lever | 1 | ||||
| 2(1) | Release bearing | 1 | Do not wash out bearing, replace noisy bearings, do not grease sliding surface of release bearing or guide tube. | |||
| 3(1) | Retainer spring | 1 | ||||
| 4(1) | M8 x 16 pan-head screws | 6 | To avoid deforming the thrust plate housing the screws must be loosened in several stages and in diametrically opposite sequence. | To avoid deforming the thrust plate housing the screws must be tightened in several stages and in diametrically opposite sequence. Observe tightening torque. | ||
| 5(1) | Thrust plate | 1 | ||||
| 6(1) | Drive plate | 1 | Fit using special tool (centring mandrel) 3176. | |||
| 7(1) | M10 x 1 x 50 pan-head screws | 8 | Observe tightening specification. | |||
| 8(1) | Double-mass flywheel (DMF) | 1 | Ensure the centring pins are seated firmly. | |||
| 9(1) | Needle bush | 1 | ||||
|
||||||
