Pedal Bearing Axle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

It is essential to observe the following grease specification during assembly work on the pedals.

Lubrication required in most cases. Grease the bearing bushings marked X and the pedal bearing axle with Optimol, Optitemp LG 2, Part No. 000.043.203.37.

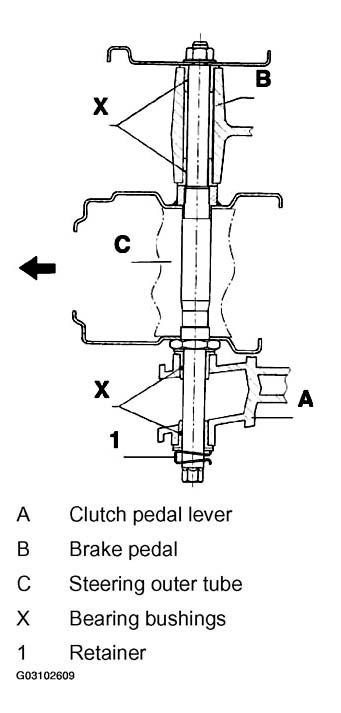

Fig 1: Sectional View Of Pedal Bearing Axle Assembly
G03102609Courtesy of PORSCHE OF NORTH AMERICA, INC.
