Bleeding The Clutch System: Filling/Bleeding

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Fill the fluid reservoir up to the upper edge with new brake fluid. Connect bleeding device to the fluid reservoir.
NOTE: Use only new DOT 4 brake fluid.

This brake fluid is available under the following part number:

Container 000.043.203.66

quantity 1 liter

Container 000.043.203.67

quantity 30 liters

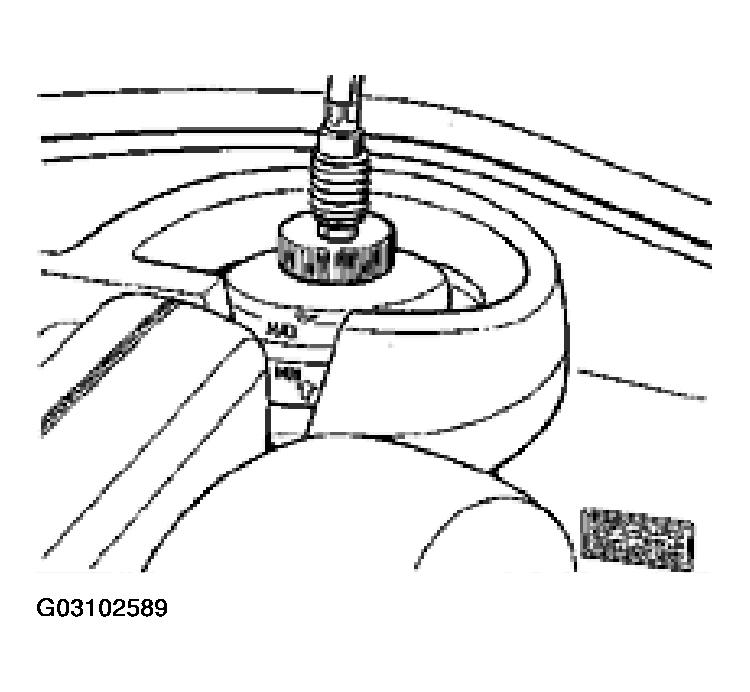

Fig 1: Connecting Bleeding Device To The Fluid Reservoir
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Move pedal to the fully depressed position. When doing so, guide the pedal by hand so that it does not move forward abruptly.
Switch on the bleeding device. Bleeding pressure approx. 1.5 bar.
The bleeder valve on the clutch slave cylinder must be opened until clear, bubble-free brake fluid emerges. Use a collecting bottle for precise examination of the emerging brake fluid for cleanliness and freedom from bubbles.

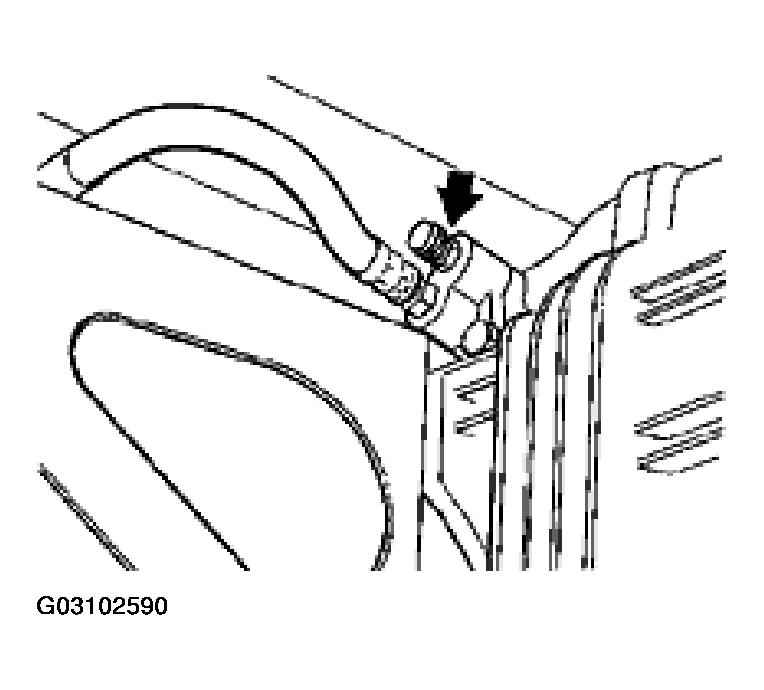

Fig 2: Identifying Bleeder Valve On The Clutch Slave Cylinder
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: If the system was open previously (for example, for component replacement), the minimum filling or bleeding time must be 30 seconds.
Switch off and disconnect the bleeding device. Correct the brake fluid level if necessary.

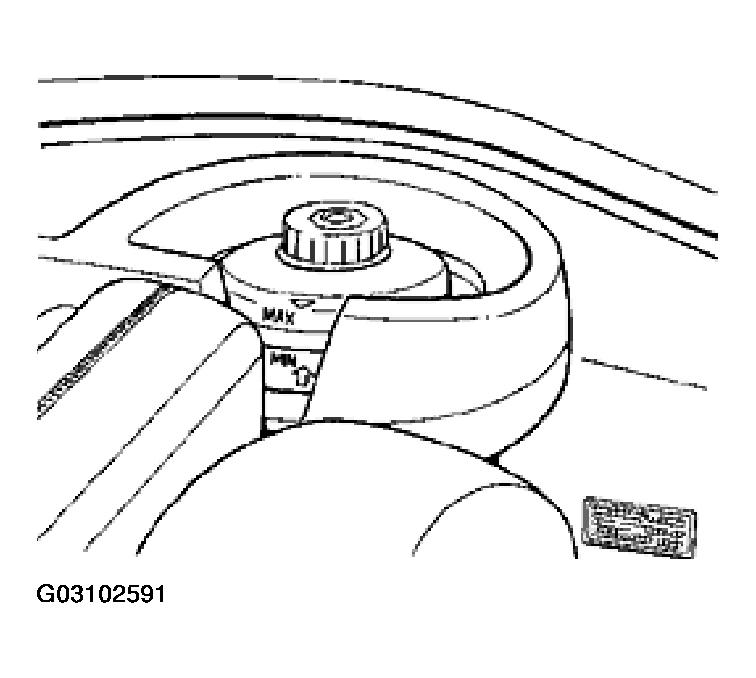

Fig 3: Locating Brake Fluid Reservoir
Courtesy of PORSCHE OF NORTH AMERICA, INC.
