Removing and installing starter - Boxster S: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move convertible top to service position. Disconnect the battery and cover terminal or battery. Open the engine-compartment lid.
  2. Undo hose clamp between throttle body and air cleaner. Disconnect vent line between intake distributor and oil separator.
  3. Loosen both inner hose clamps at the intake distributor.

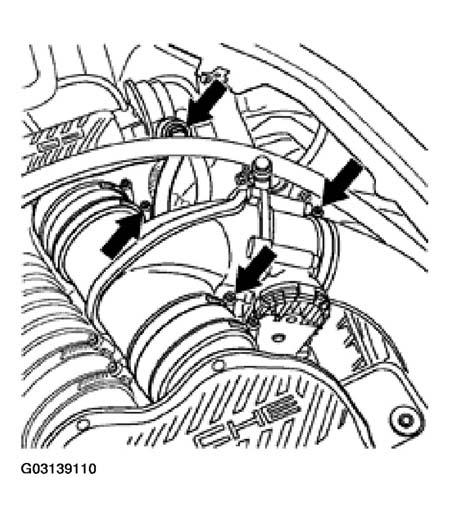

    Fig 1: Loosening Inner Hose Clamps At Intake Distributor - Boxster S
    G03139110Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Undo holder for the throttle body on the crankcase. Swivel the intake distributor with throttle body upward by approx. 45° and detach the oil filler hose.
  5. Detach the cable of terminal 30 (M8) and terminal 50 (M6) on the solenoid switch. Undo both hexagon-head bolts M10 on the starter and remove the ground lead. Lift starter out of the holder.

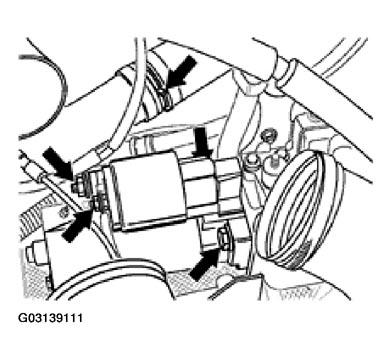

Fig 2: Detaching Cable Of Terminal 30 And Terminal 50 On Starter Solenoid Switch - Boxster S
G03139111Courtesy of PORSCHE OF NORTH AMERICA, INC.
